Machine Catalog

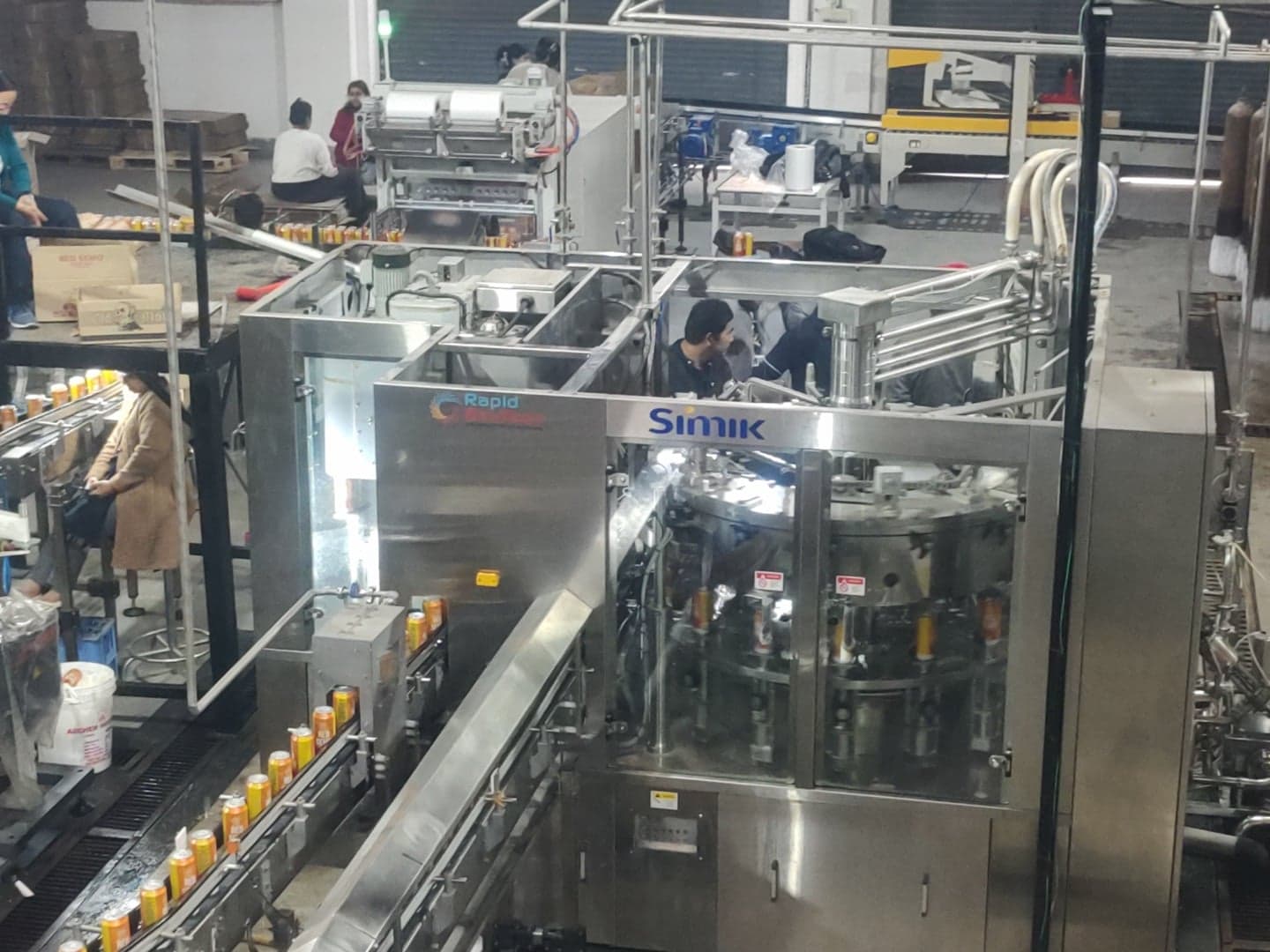

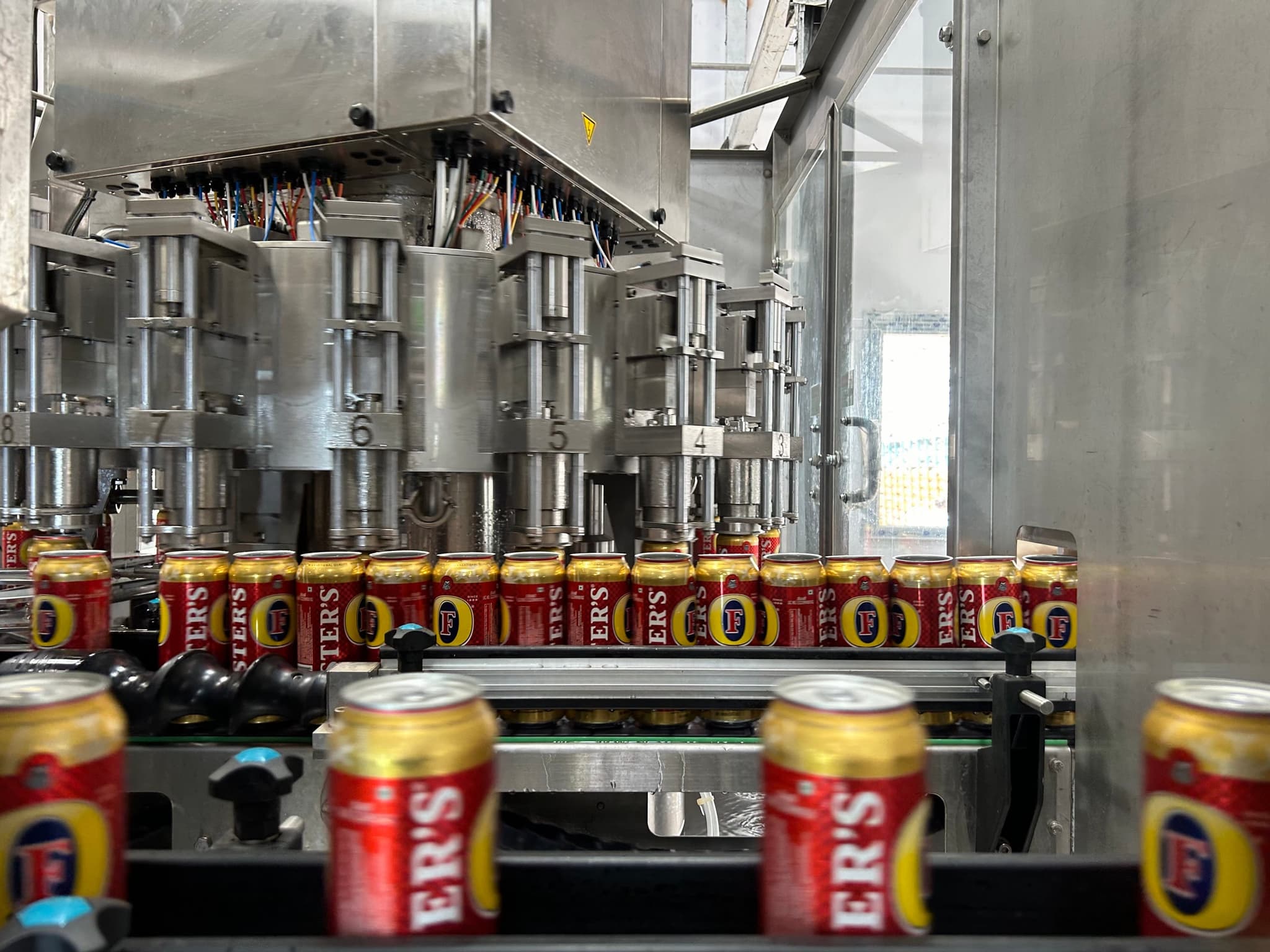

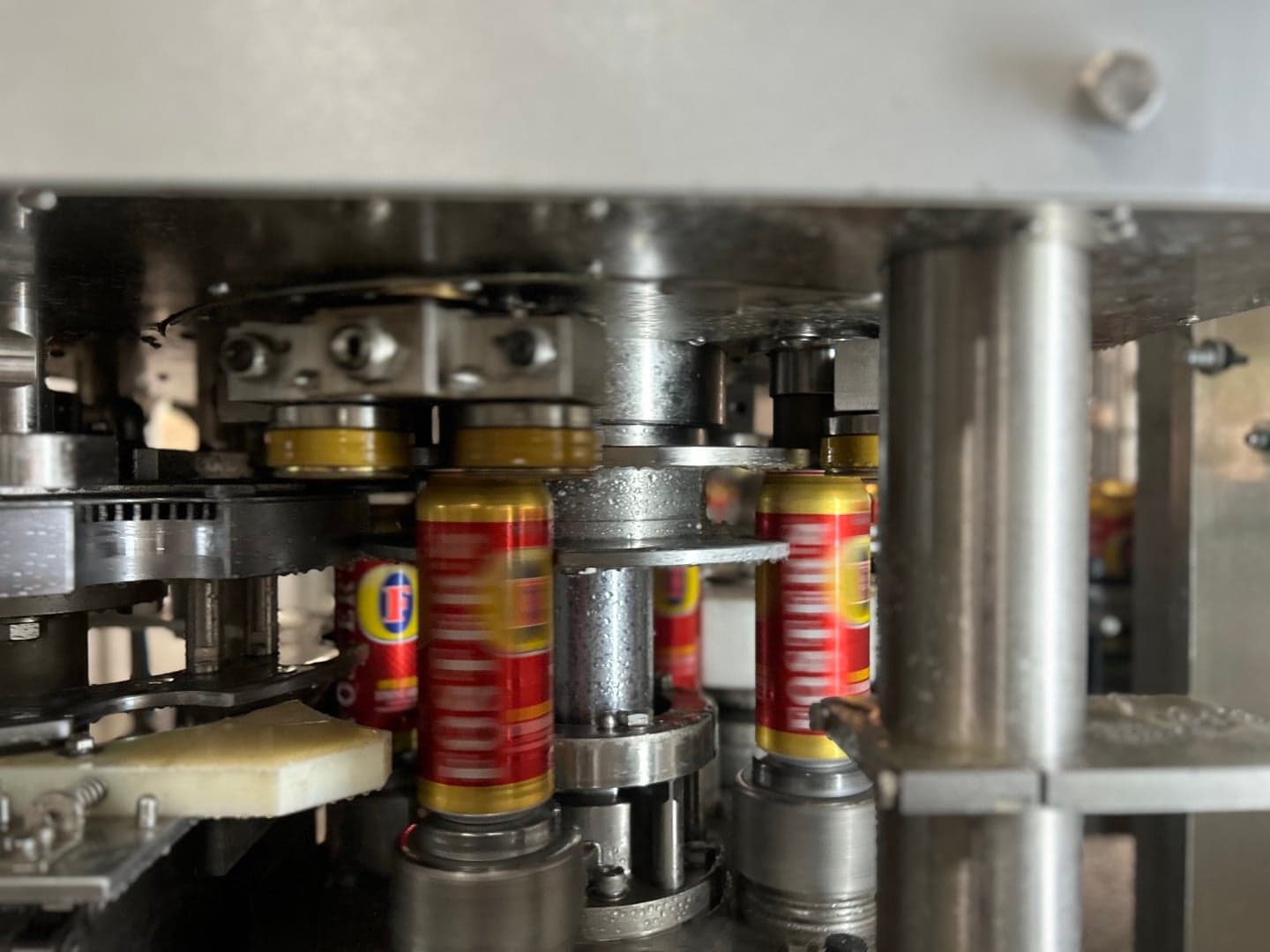

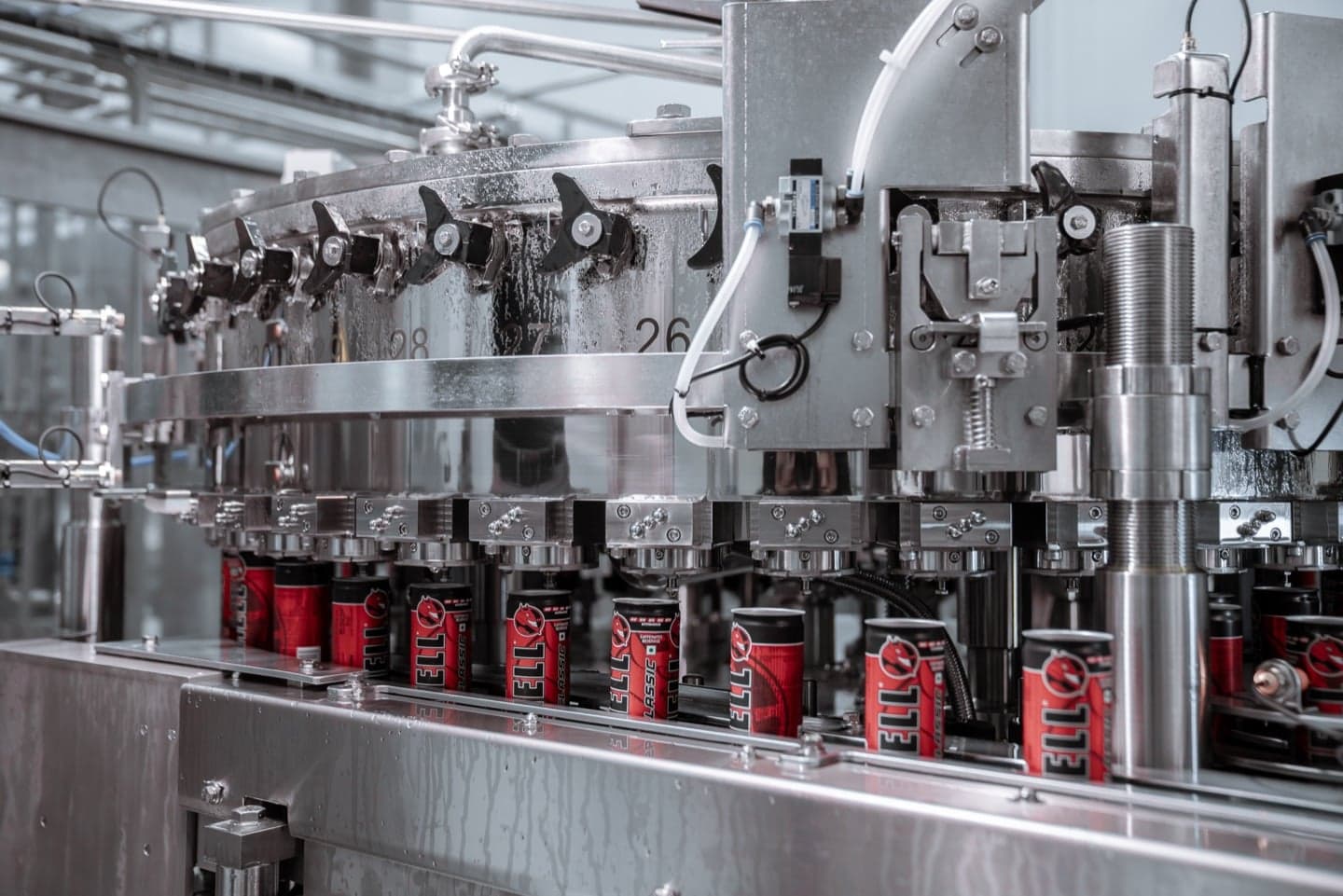

RAPIDfill-EM-C is a mechanical filling machine for can pack sizes 185ml to 750ml, suitable for beer and CSD products with high product safety. The improved CO2 pre-flushing system achieves low DO pickup.

RAPIDfill-EV-C is a volumetric filling machine for can pack sizes 185ml to 750ml, suitable for beer and CSD products with high product safety. The improved CO2 pre-flushing system achieves low DO pickup.

RAPIDfill-C filling machine for can pack sizes 200ml to 1,000ml, suitable for beer and CSD products with high product safety. The improved CO2 pre-flushing system achieves DO pickup down to 30 ppb.

RAPIDfill-C filling machine for can pack sizes 200ml to 1,000ml, suitable for beer and CSD products with high product safety. The improved CO2 pre-flushing system achieves DO pickup down to 30 ppb.

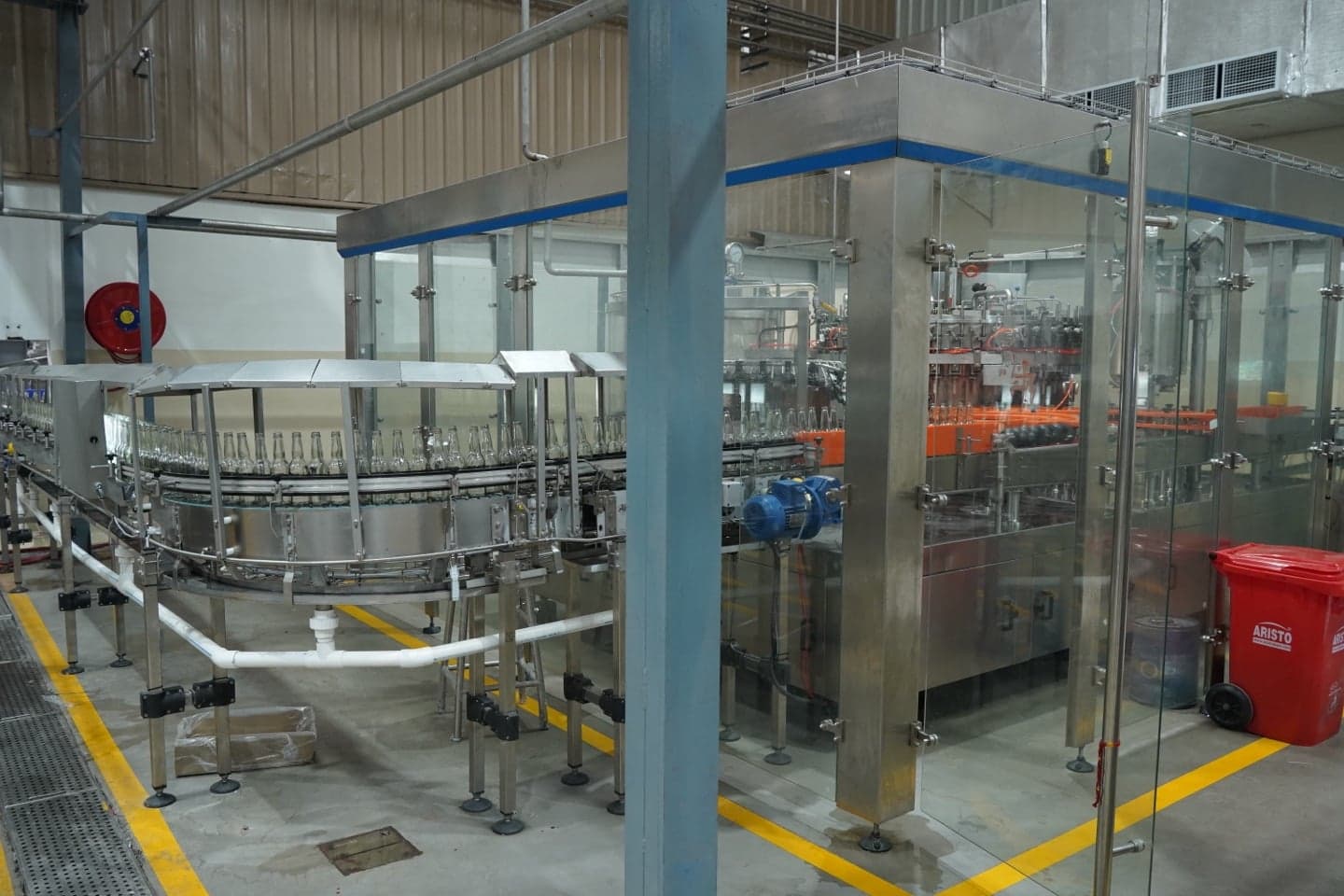

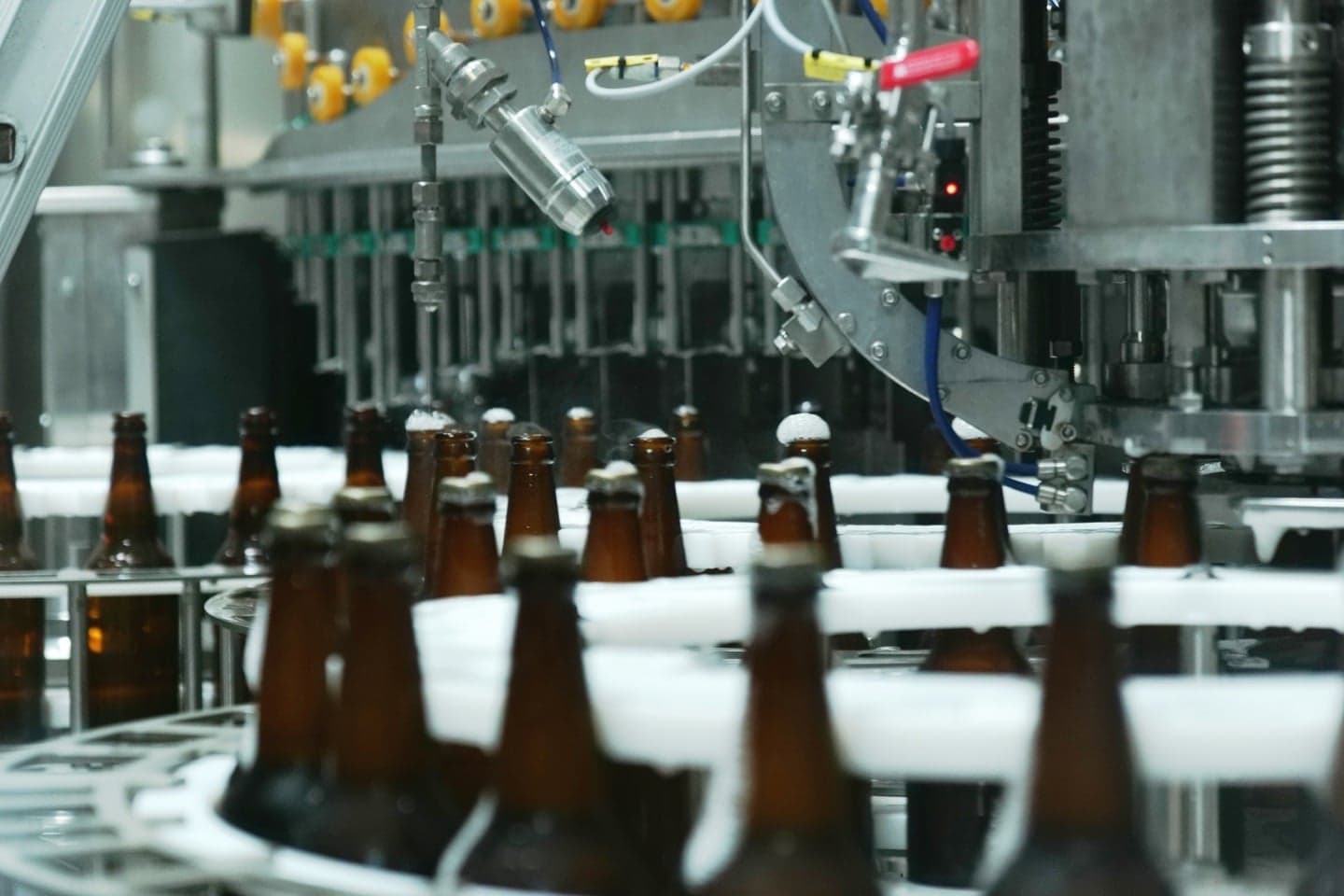

RAPIDfill filling machine for glass bottles (250ml to 650ml) combines reliability, hygiene, flexibility, and performance. RAPIDfill-BM (mechanical) and RAPIDfill-BE (electro-pneumatic) valve options are available.

RAPIDfill filling machine for glass bottles (250ml to 650ml) combines reliability, hygiene, flexibility, and performance. RAPIDfill-BM (mechanical) and RAPIDfill-BE (electro-pneumatic) valve options are available.

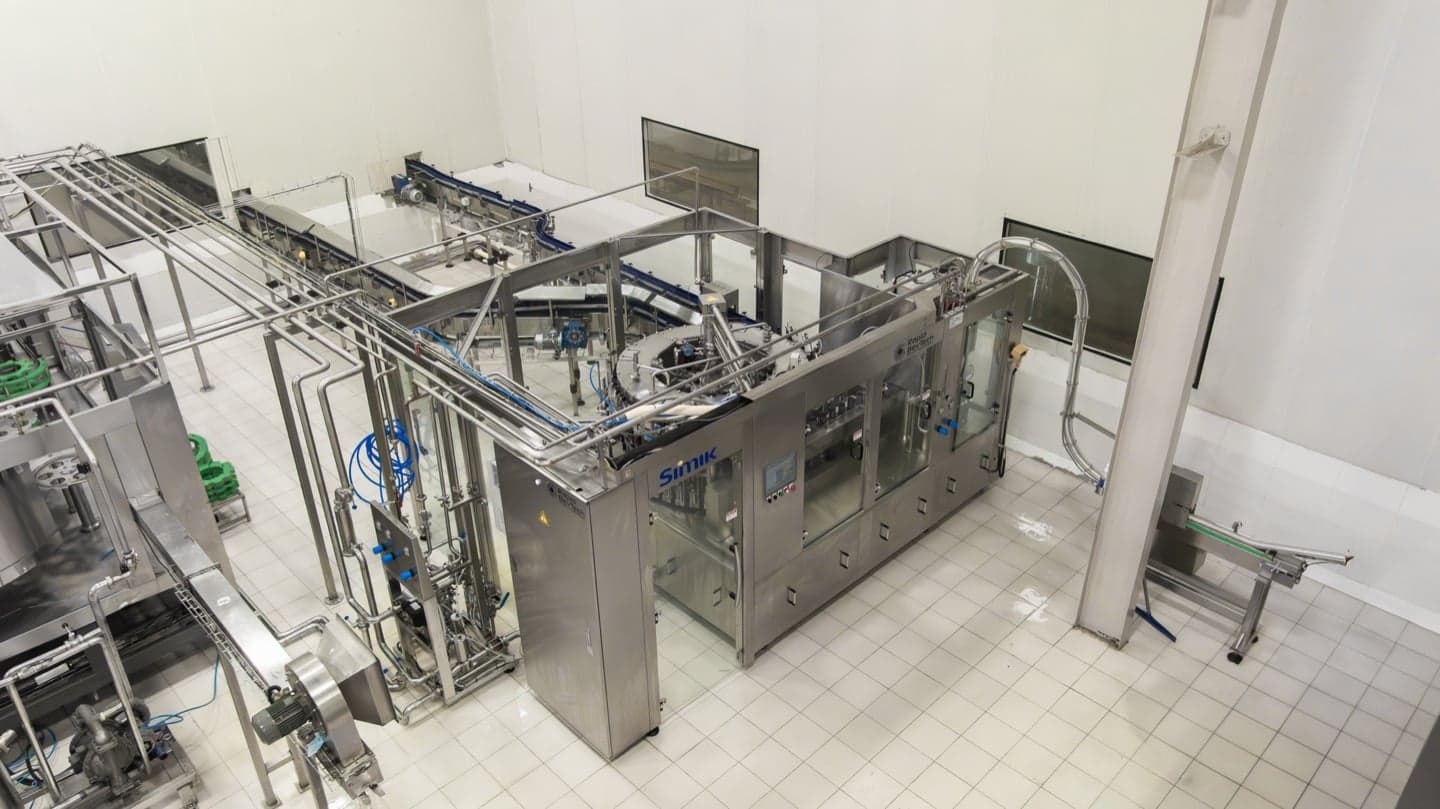

RAPIDfill-CH is a hot-fill can filler designed for juice and RTD beverages. The system maintains precise fill temperatures (85-95°C) for aseptic filling without preservatives.

RAPIDfill-CH is a hot-fill can filler designed for juice and RTD beverages. The system maintains precise fill temperatures (85-95°C) for aseptic filling without preservatives.

RAPIDfill-PH is a hot-fill PET bottle filler designed for juice and RTD beverages. The system maintains precise fill temperatures for aseptic filling of heat-resistant PET bottles.

RAPIDfill-PH is a hot-fill PET bottle filler designed for juice and RTD beverages. The system maintains precise fill temperatures for aseptic filling of heat-resistant PET bottles.

RAPIDfill-W is a high-speed PET bottle filler designed specifically for still and sparkling water. The gravity filling system with electronic flow meters delivers consistent fill accuracy at high throughput.

RAPIDfill-W is a high-speed PET bottle filler designed specifically for still and sparkling water. The gravity filling system with electronic flow meters delivers consistent fill accuracy at high throughput.

RAPIDunpack series of pick-and-place unpackers handle a wide range of cylindrical glass containers from plastic crates. Bottles are gripped pneumatically, lifted to 1.2 mtr conveyor height, and released on the bottle table.

Available in two versions: RAPIDerect-H (hot melt, up to 30 cartons/min) uses vacuum pad extraction with mechanically coupled cam operation for high-speed lines. RAPIDerect-T (BOPP tape, 18-20 cartons/min) is semi-automatic, suitable for low and middle speed lines for both glass and can.

Available in two versions: RAPIDerect-H (hot melt, up to 30 cartons/min) uses vacuum pad extraction with mechanically coupled cam operation for high-speed lines. RAPIDerect-T (BOPP tape, 18-20 cartons/min) is semi-automatic, suitable for low and middle speed lines for both glass and can.

RAPIDpack series pick-and-place packers handle cylindrical glass or PET containers into plastic crates or cartons. Packing zone lengths range from 1,400 to 2,800 mm.

RAPIDpack series pick-and-place packers handle cylindrical glass or PET containers into plastic crates or cartons. Packing zone lengths range from 1,400 to 2,800 mm.

RAPIDpack series pick-and-place packers handle cylindrical glass or PET containers into plastic crates or cartons. Packing zone lengths range from 1,400 to 2,800 mm.

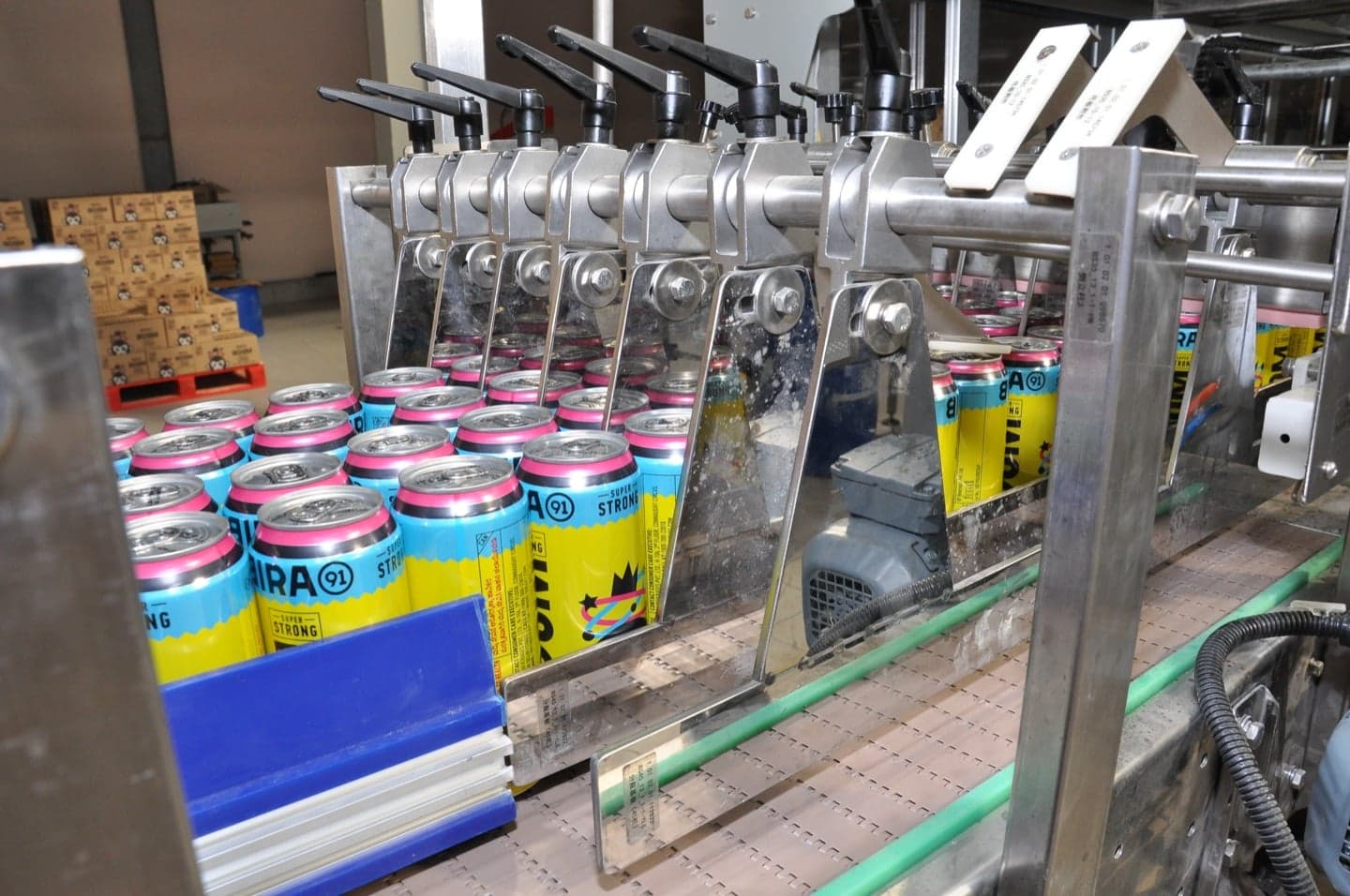

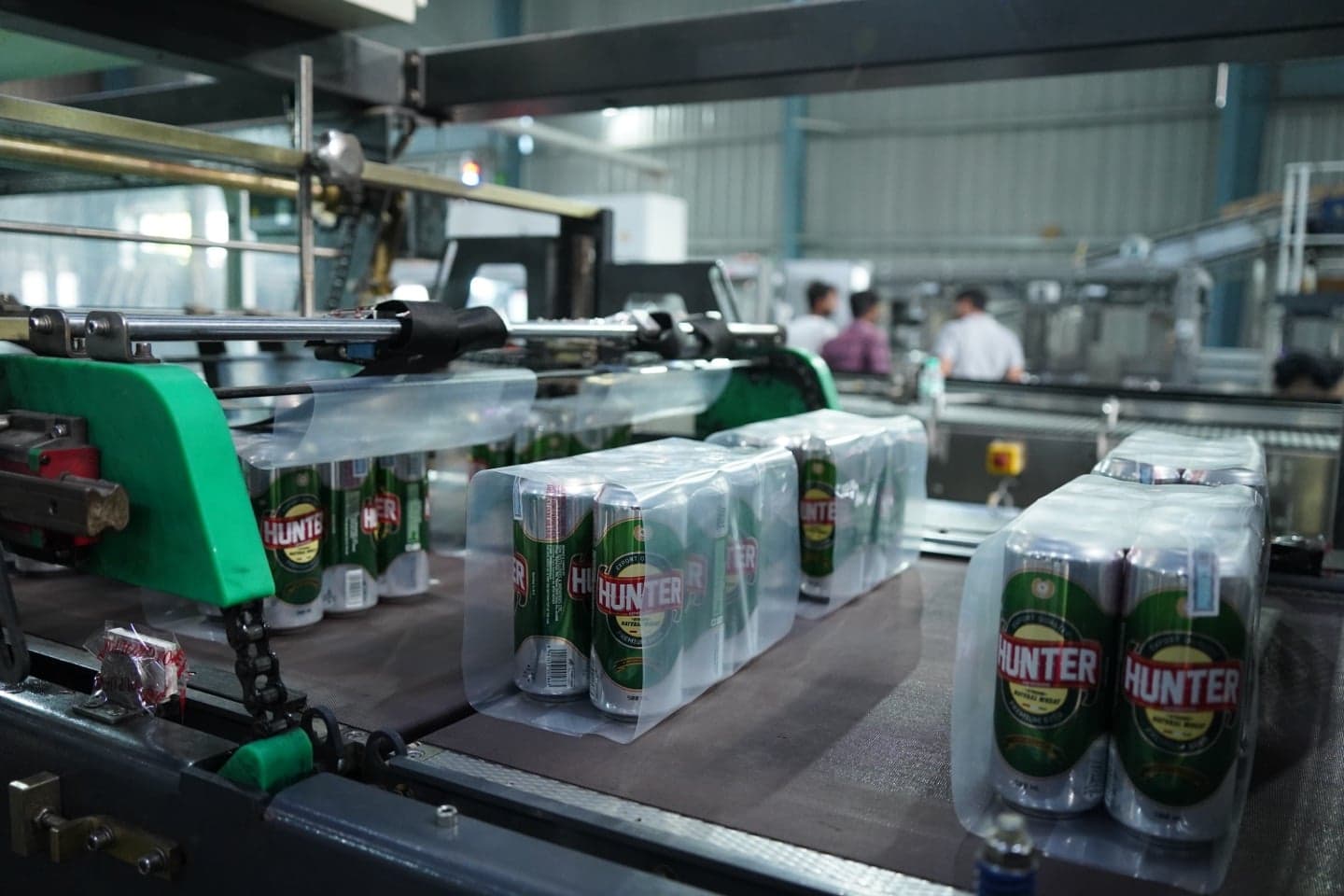

RAPIDshrink-F35/S is a single-roll shrink packer delivering high-quality shrink-wrapped packs for PET or can containers in the medium speed range. Offers speed ranges from 15 to 35 cycles/min for pack sizes 200ml to 2.25 ltr in single or double lane design..

RAPIDshrink-F110/S is a single-roll shrink packer delivering high-quality shrink-wrapped packs for PET or can containers in the high speed range. Offers speed ranges from 35 to 110 cycles/min for pack sizes 200ml to 2.25 ltr in single or double lane design..

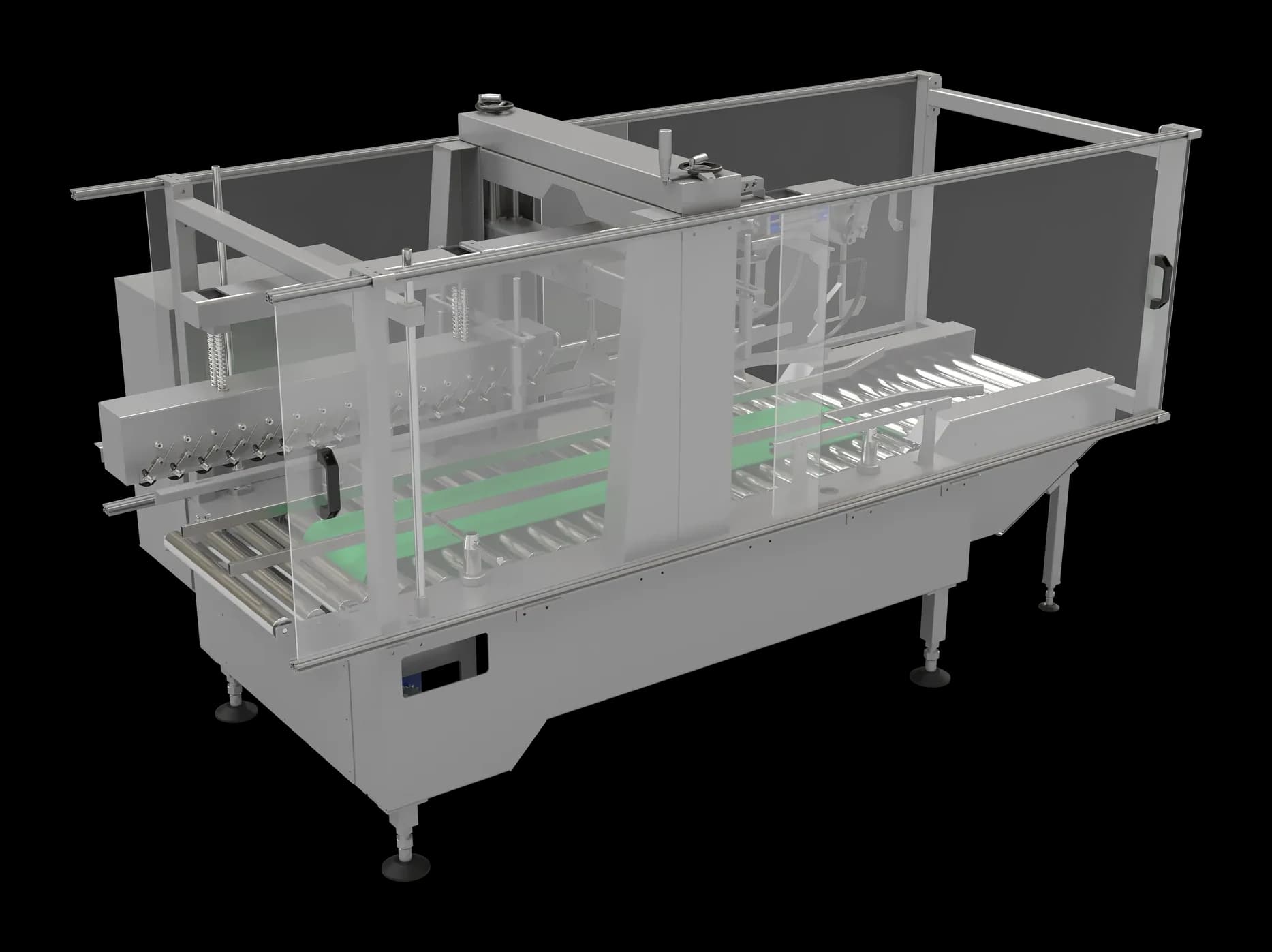

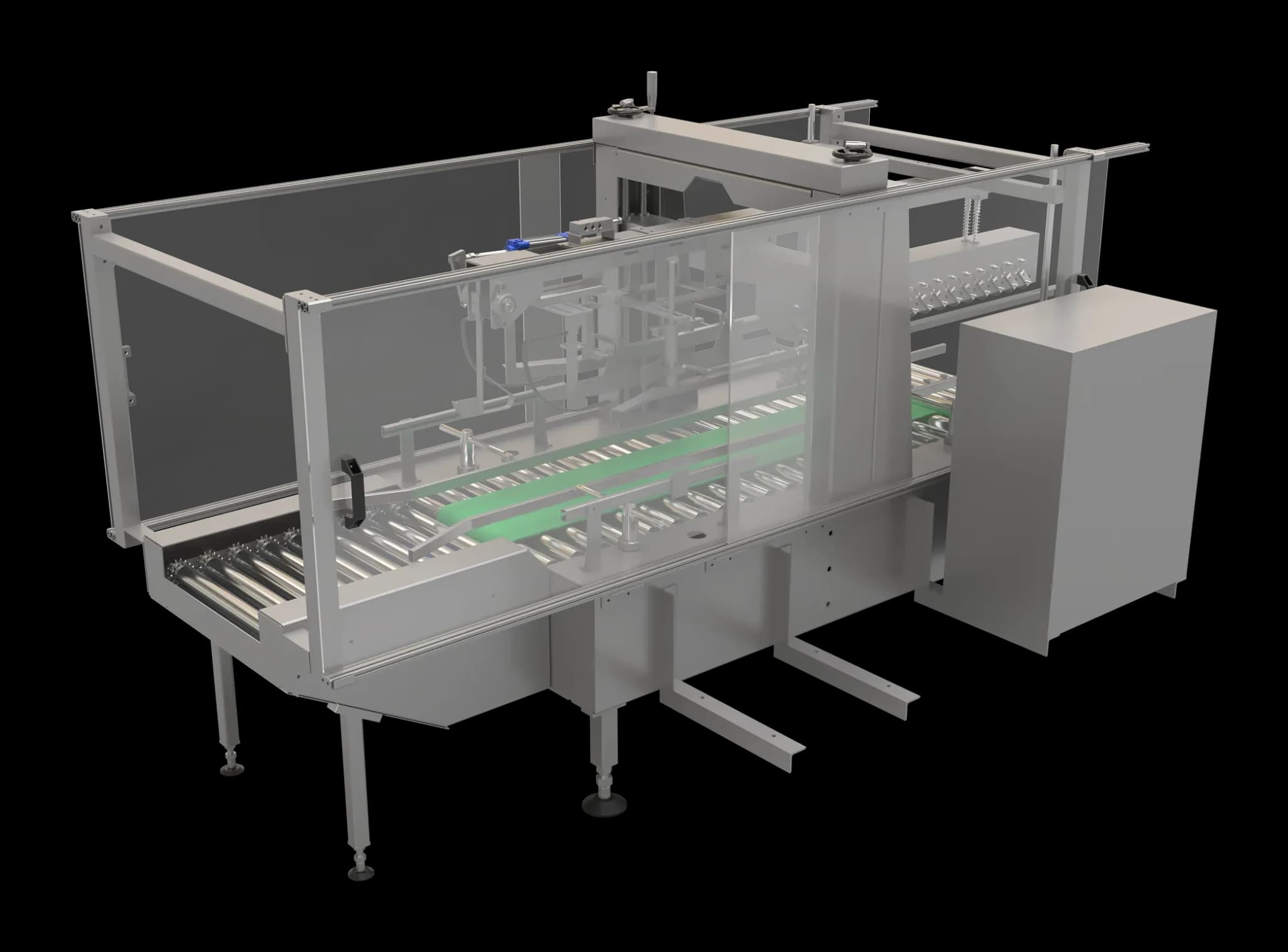

Available as RAPIDseal-HT (hot melt glue) and RAPIDseal-TT (BOPP tape), both rated up to 38 cartons/min. Height and width of sealing area adjust within seconds for different carton sizes.

Available as RAPIDseal-HT (hot melt glue) and RAPIDseal-TT (BOPP tape), both rated up to 38 cartons/min. Height and width of sealing area adjust within seconds for different carton sizes.

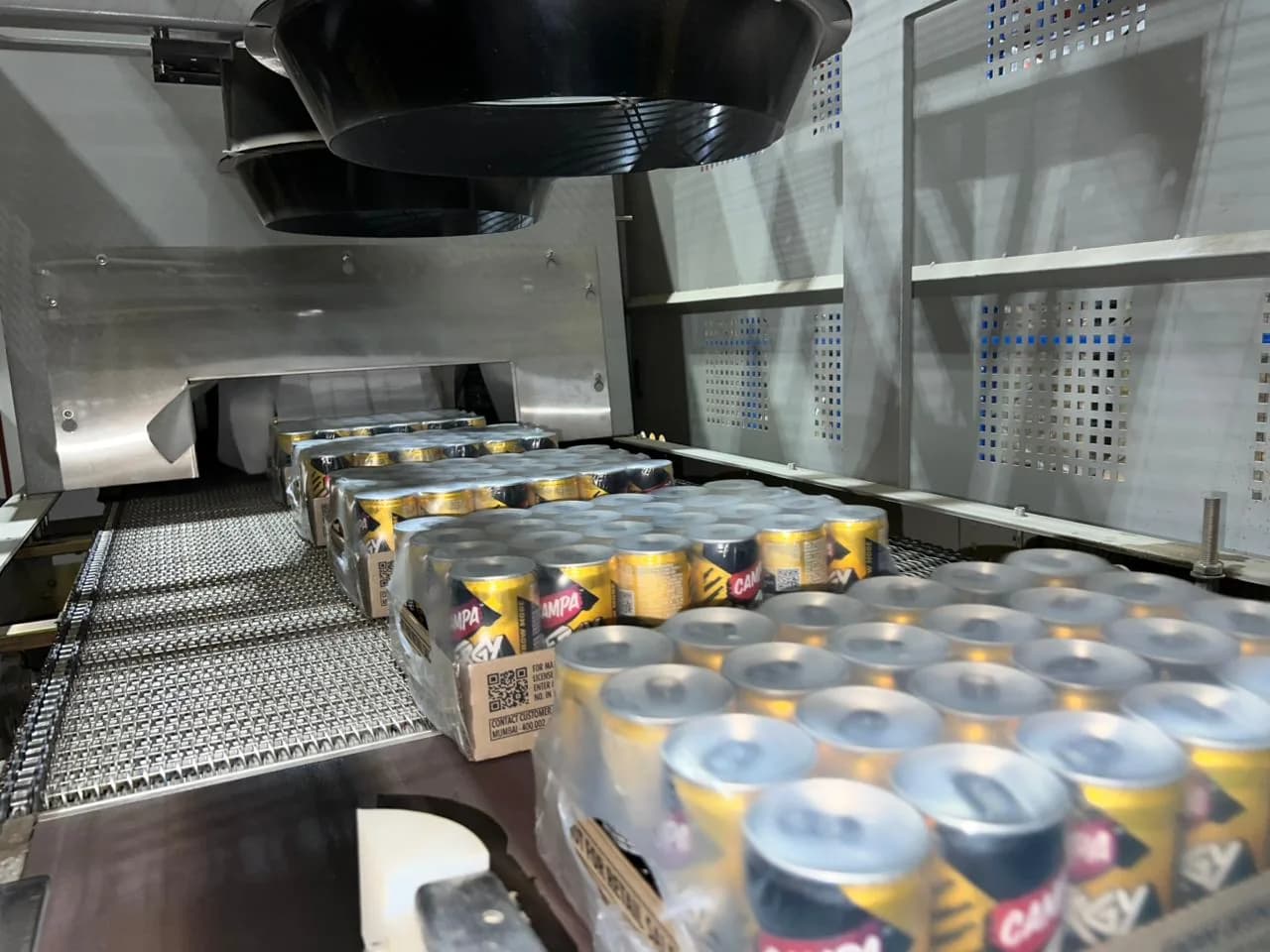

Tray shrink packer that forms corrugated trays around grouped containers and wraps them with shrink film for retail-ready packs. Suitable for PET bottles and cans with servo-controlled tray forming.

Automatic wrap-around case packer for Can, Glass, and PET containers. Forms carton blanks around grouped containers with hot melt glue application for secure, retail-ready packaging.

Automatic wrap-around case packer for Can, Glass, and PET containers. Forms carton blanks around grouped containers with hot melt glue application for secure, retail-ready packaging.

Automatic wrap-around case packer for Can, Glass, and PET containers. Forms carton blanks around grouped containers with hot melt glue application for secure, retail-ready packaging.

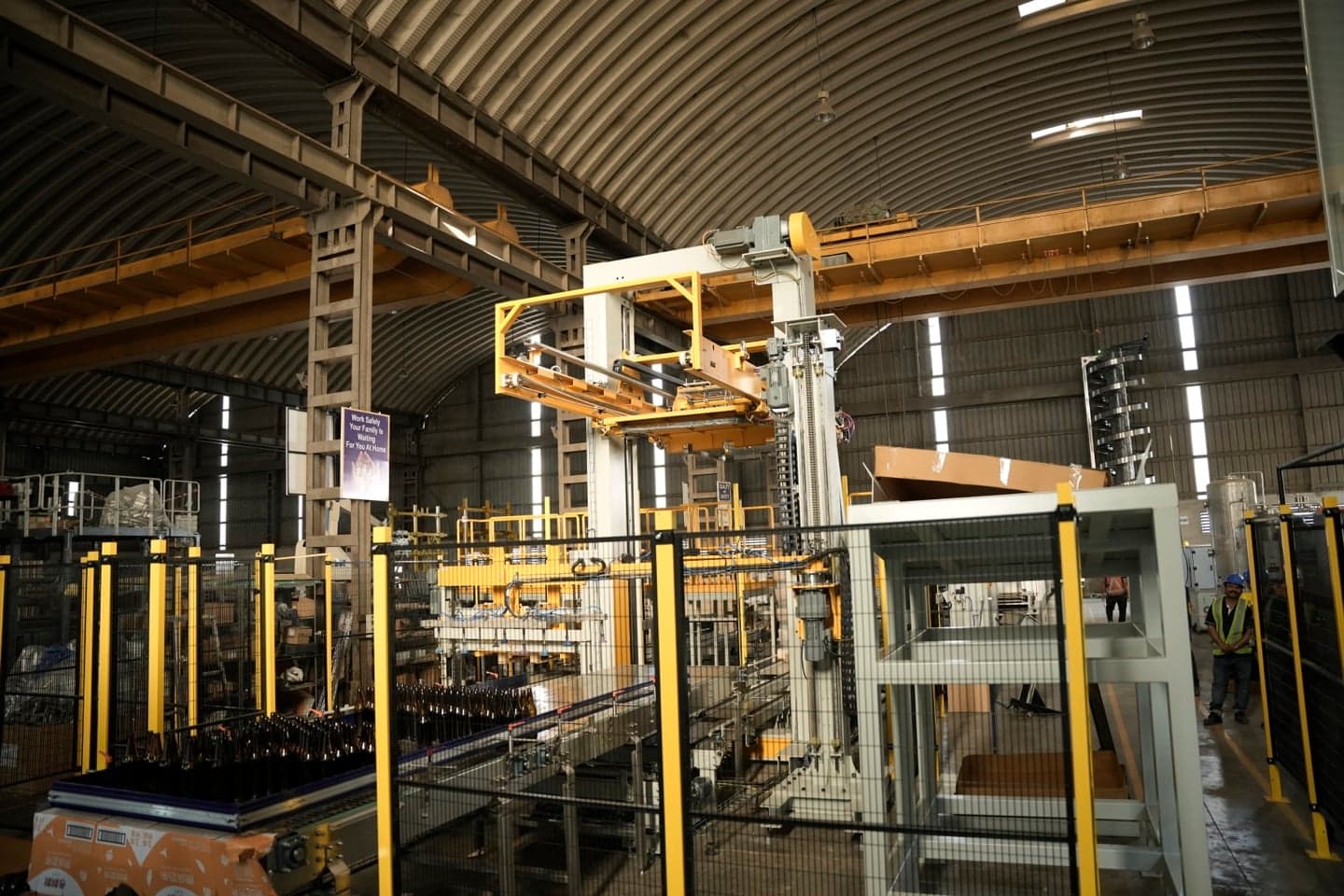

Automatic de-palletiser for glass bottles from pallets with layer-by-layer bottle removal and gentle handling for damage-free operation. Compatible with multiple pallet sizes..

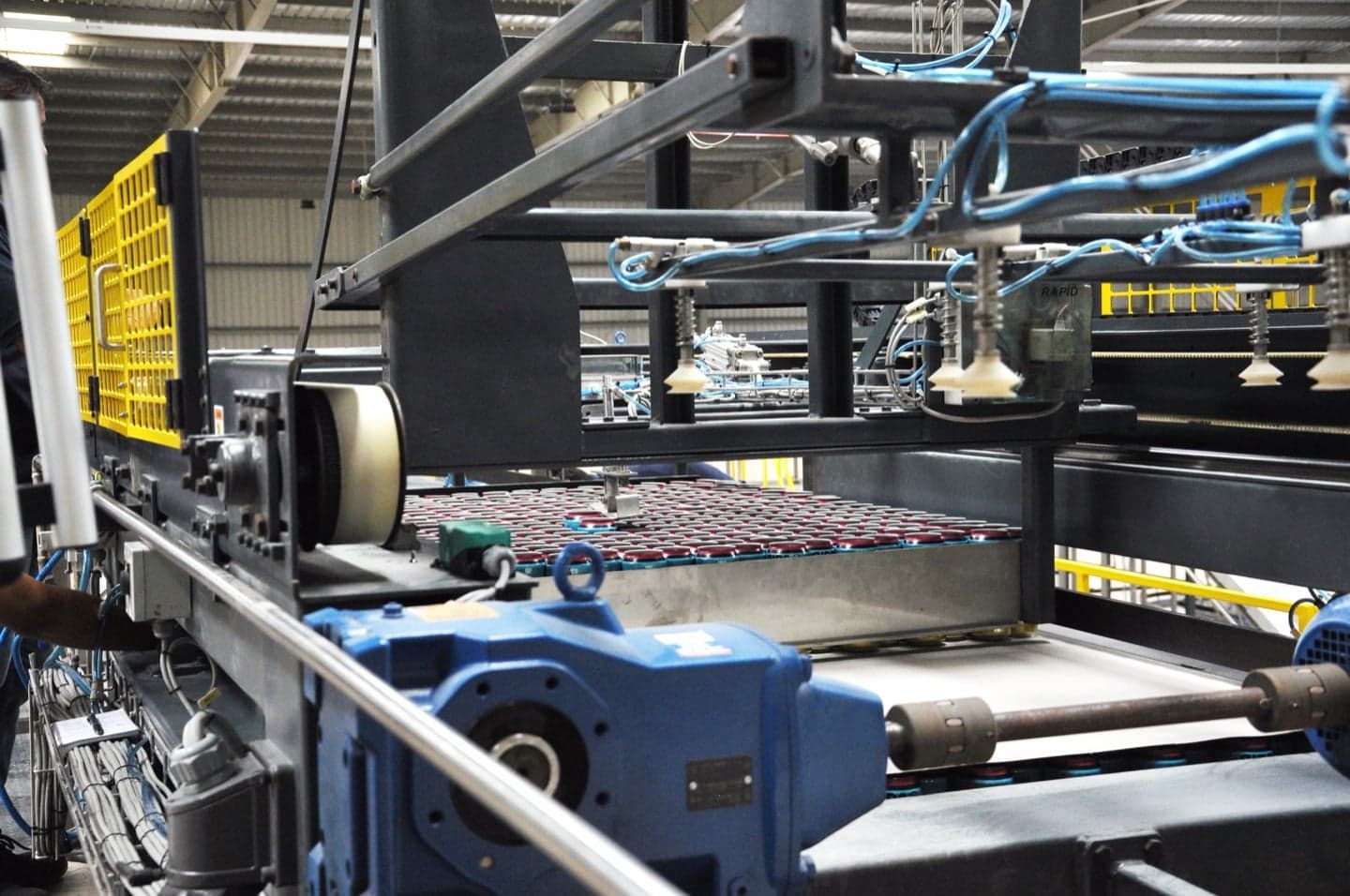

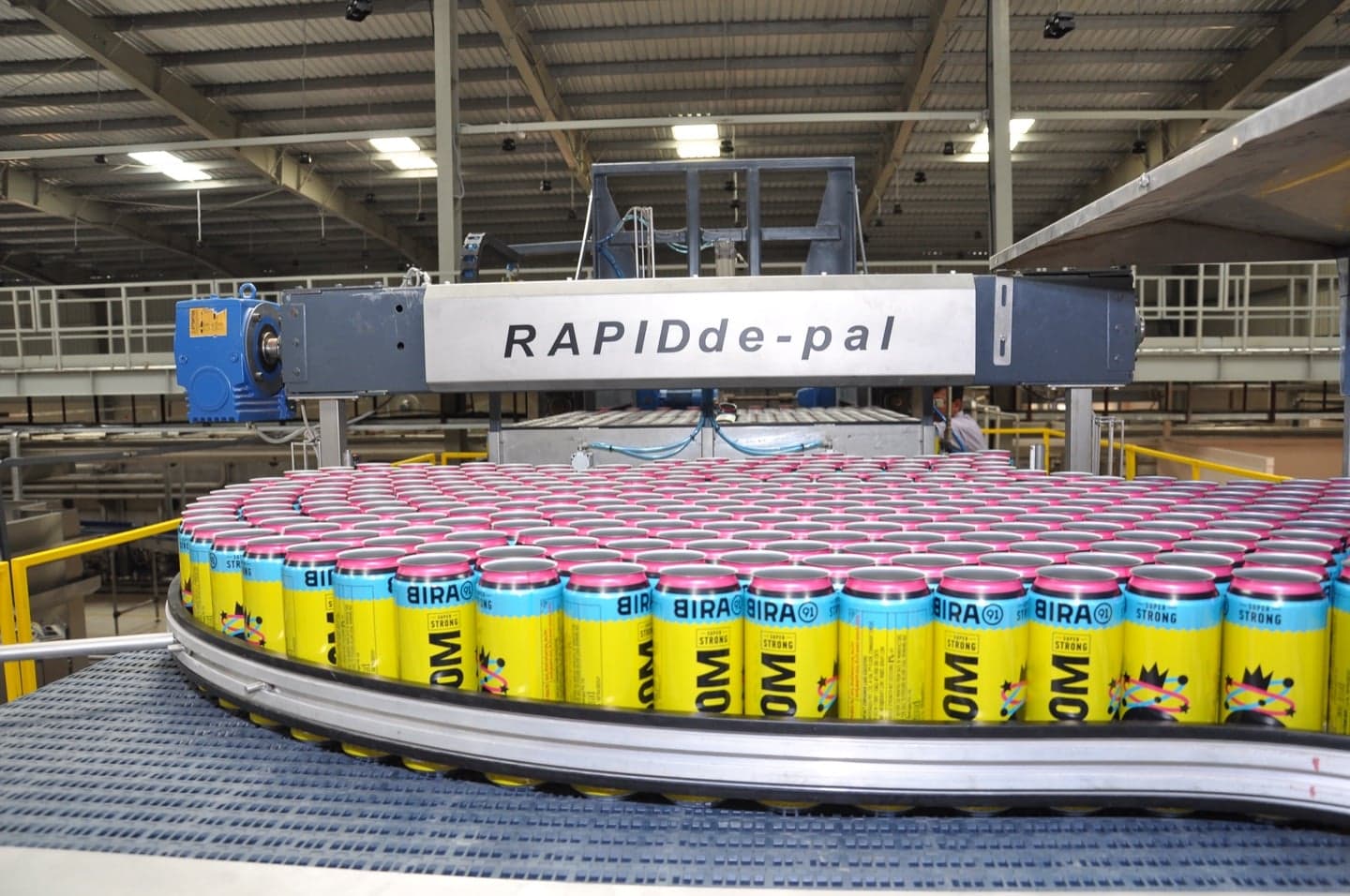

RAPIDde-pal-ST is suitable for low to medium-speed de-palletising of empty cans with layer pushing speed up to 1.5 layers/min. Capable of in-line or 90-degree outfeed configurations, it adapts to different pallet sizes and container heights..

RAPID-depal-STA is suitable for high-speed de-palletising of empty cans with layer pushing speed up to 2.5 layers/min. Capable of in-line or 90-degree outfeed configurations, it adapts to different pallet sizes and container heights..

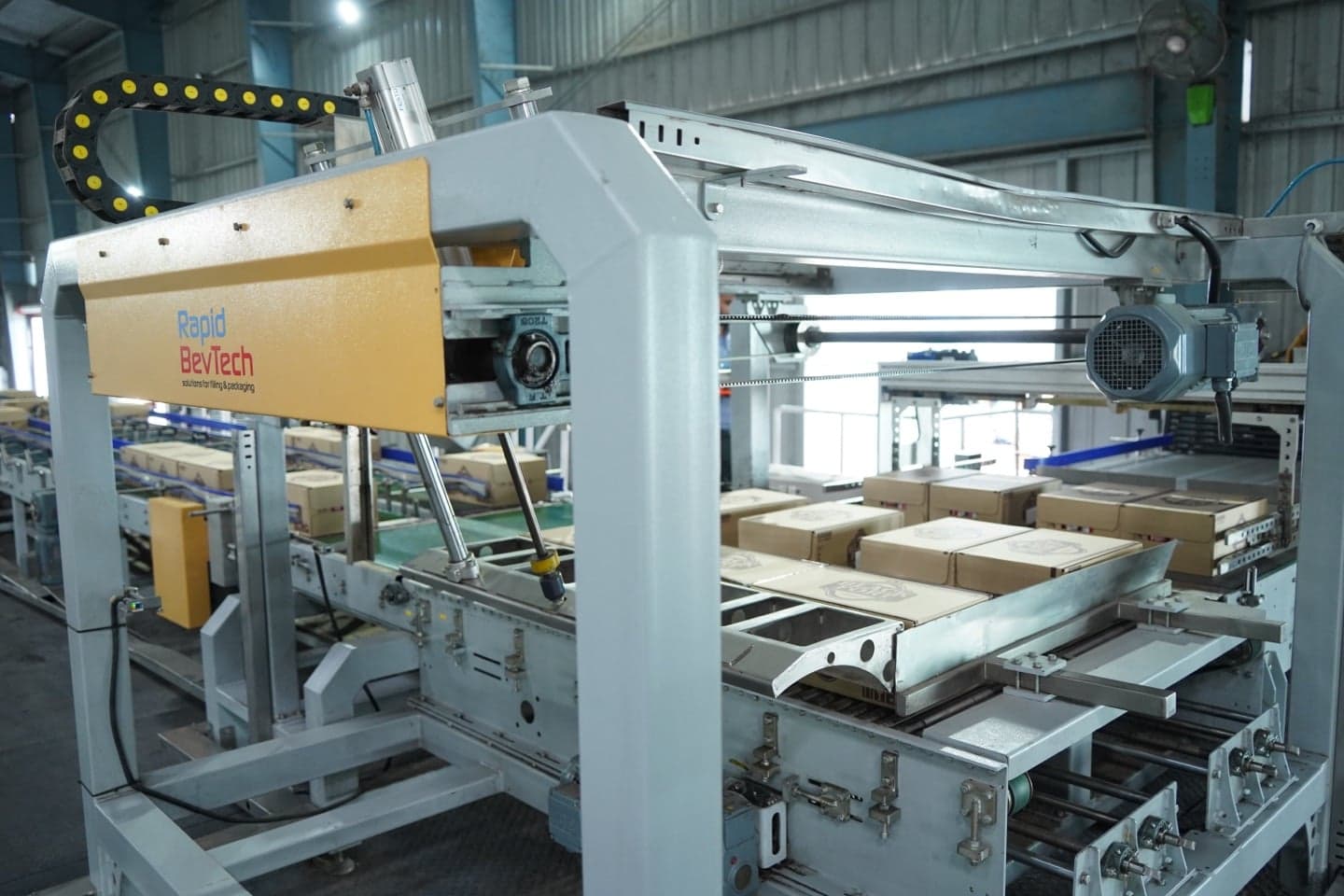

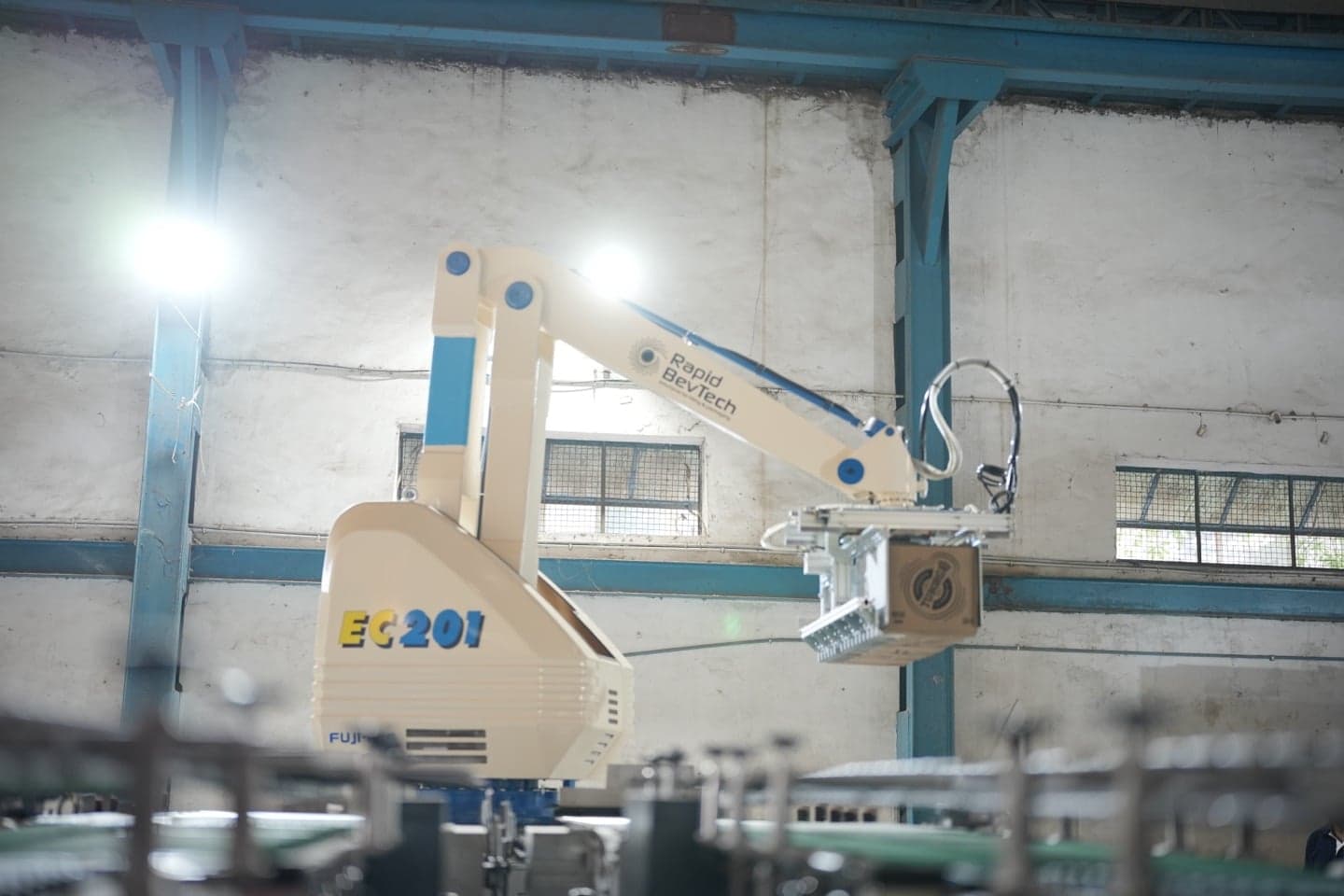

RAPIDpal stacks cartons, shrink film packs, or half tray packs onto plastic or wooden pallets with programmable layer-wise formation. Available as RAPIDpal-S (single column, up to 25 cartons/min) and RAPIDpal-D (double column, 25-60 cartons/min).

RAPIDpal stacks cartons, shrink film packs, or half tray packs onto plastic or wooden pallets with programmable layer-wise formation. Available as RAPIDpal-S (single column, up to 25 cartons/min) and RAPIDpal-D (double column, 25-60 cartons/min).

Pressure-less conveying system for glass bottles with "ONE-ON-ONE" and "GAP feed" software for zero-damage transport up to 42,000 BPH. Special combiner design ensures no bottle shortage to filler even with EBI rejections up to 8%.

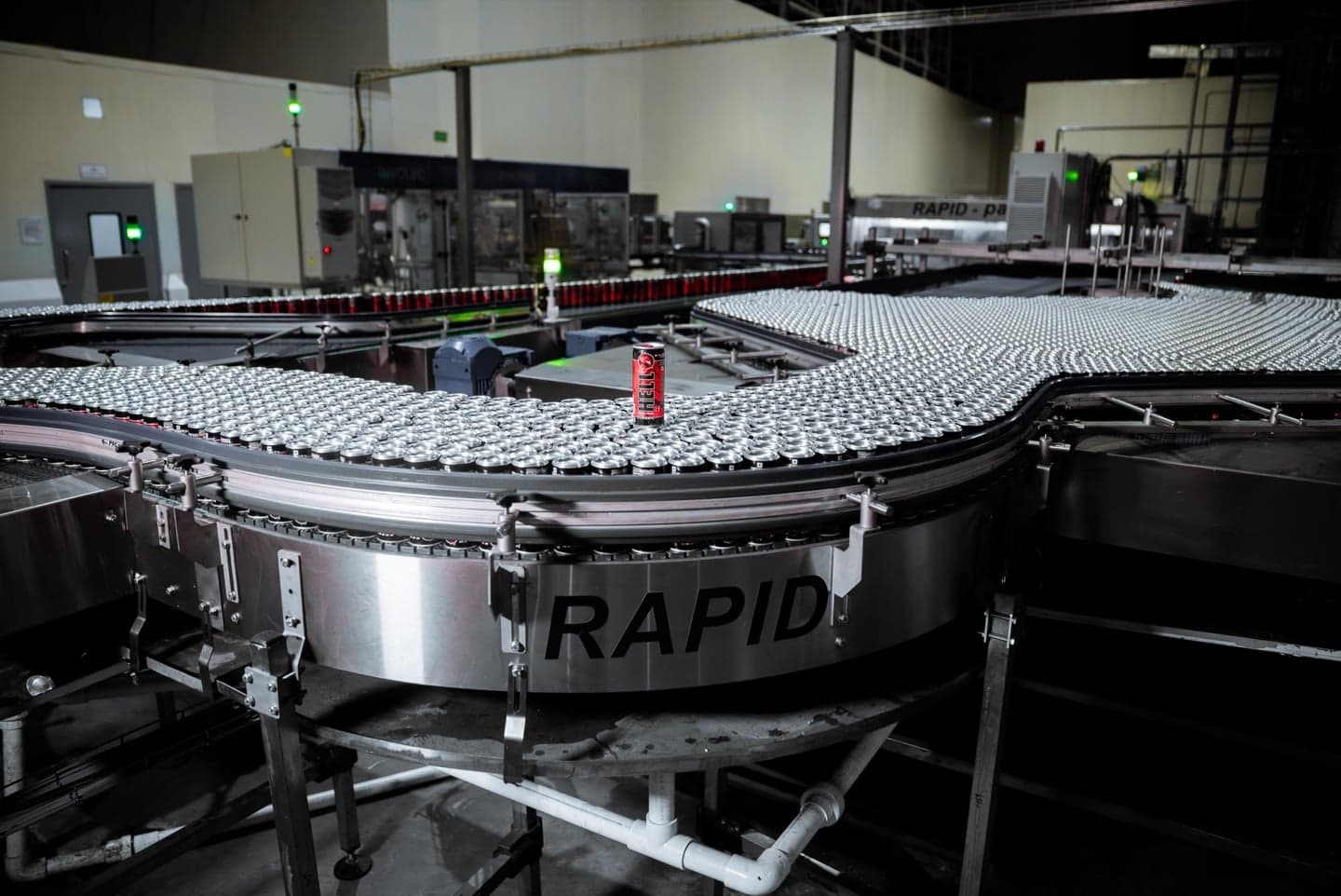

Efficient low-pressure conveying system for empty and filled cans. Modular design allows flexible layout configurations up to 42,000 BPH.

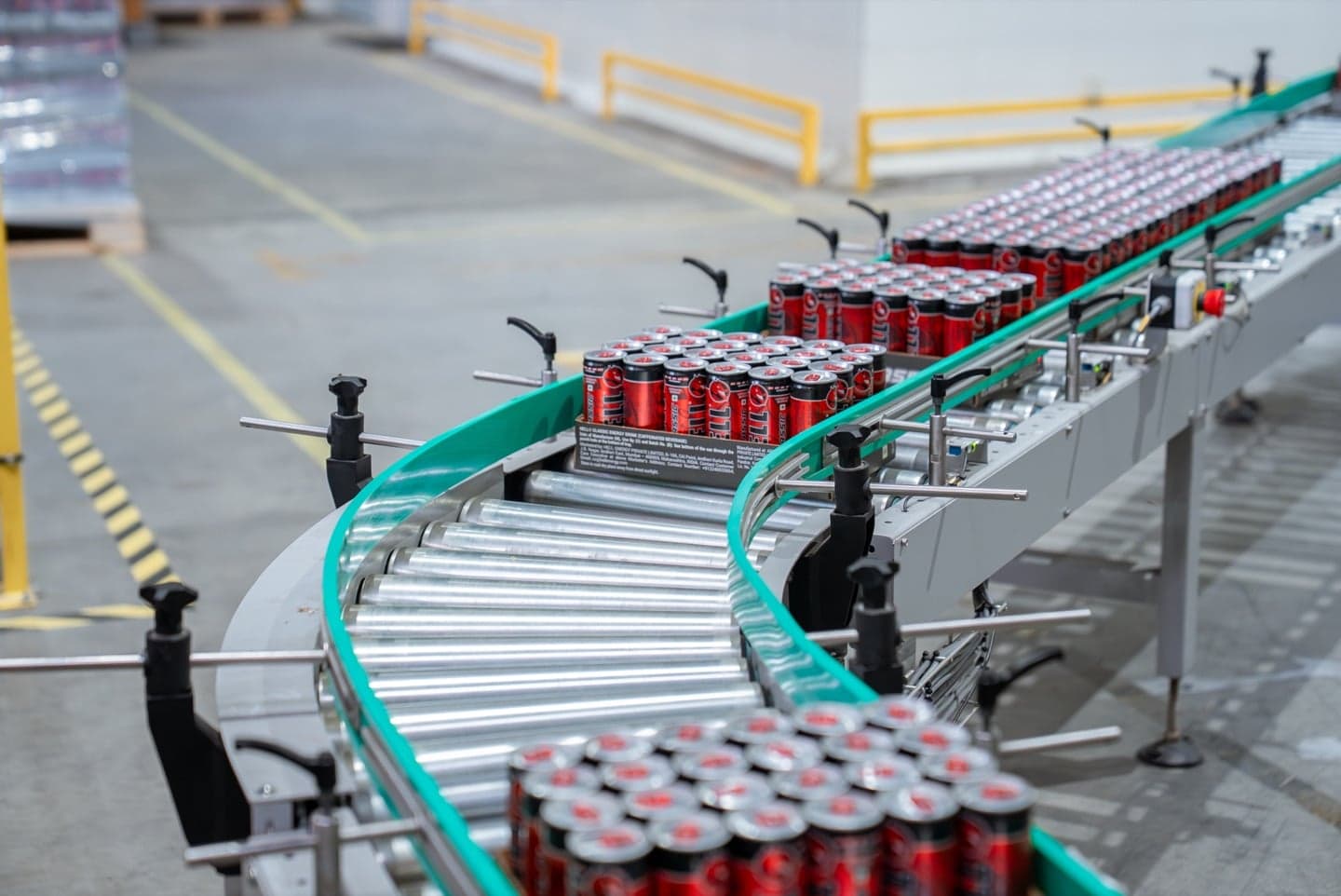

Conveyor system for transporting packed shrink film packs, cartons, and crates from packers to palletisers..

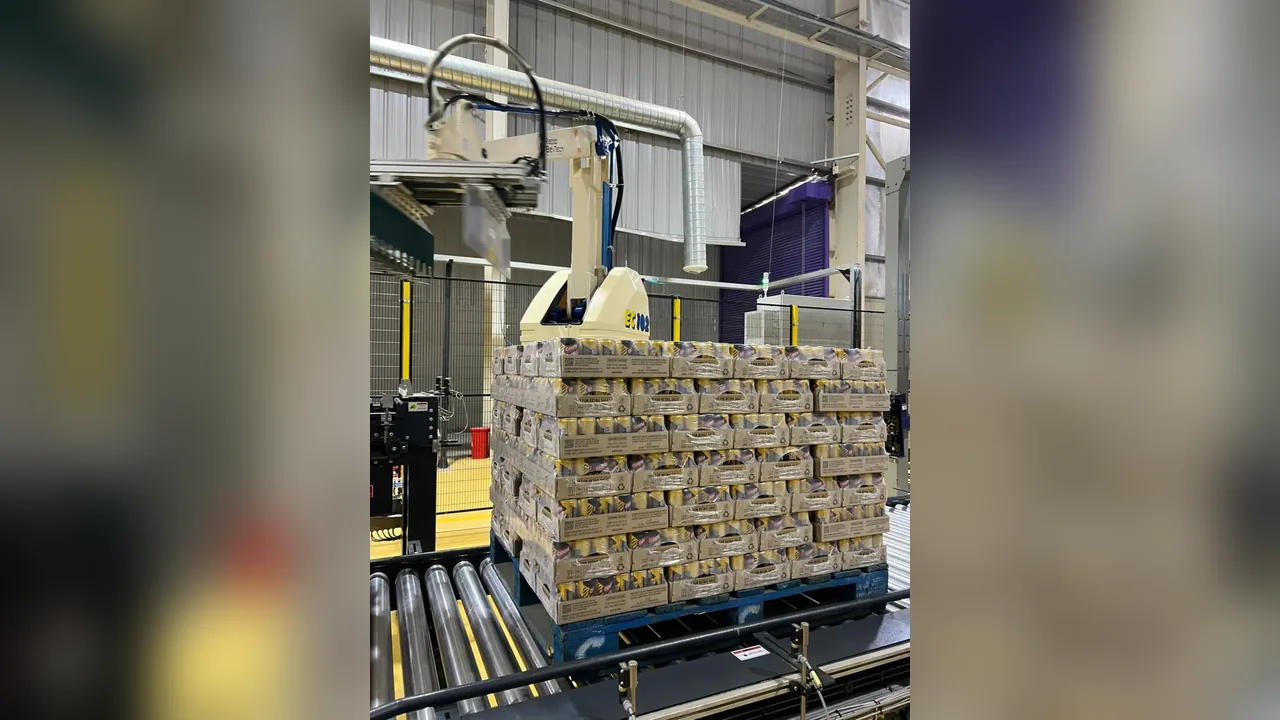

RAPIDcon-P/C provides heavy-duty conveying of loaded pallets from the palletiser to the warehouse or dispatch area. Available in slate chain or powered roller configurations to suit the application, it moves fully loaded pallets smoothly and reliably, with the layout configured to site conditions for continuous end-of-line operation..

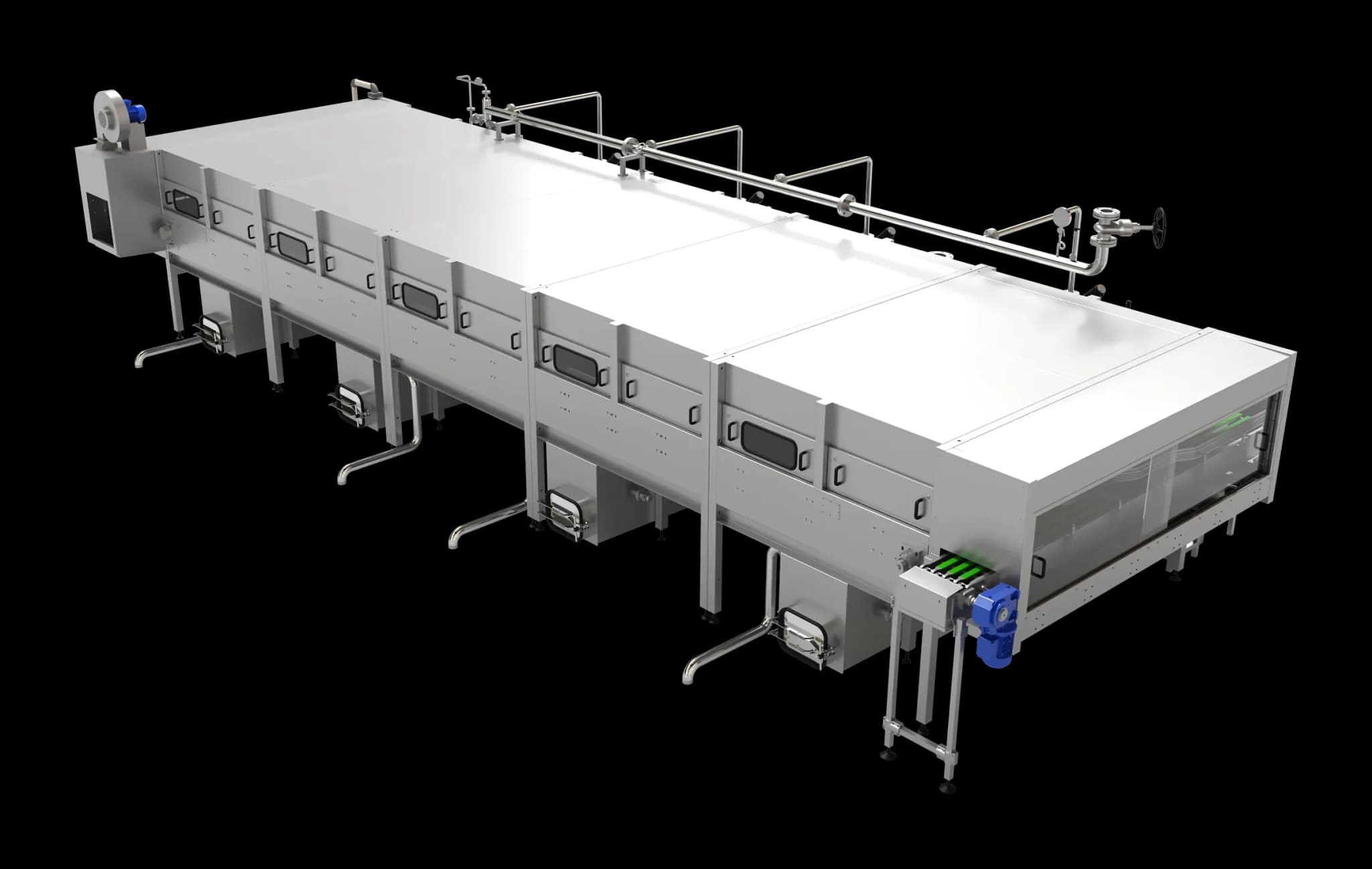

Tunnel cooler for hot-filled beverages, gradually bringing containers to ambient temperature using a multi-zone spray system. The controlled cooling profile prevents thermal shock and ensures product quality.

RAPIDpas tunnel pasteuriser ensures effective pasteurisation for beer, soft drinks, isotonic, and tea products. Modular design offers process widths from 0.8 to 4.2 metres in single tunnel configuration.

RAPIDpas tunnel pasteuriser ensures effective pasteurisation for beer, soft drinks, isotonic, and tea products. Modular design offers process widths from 0.8 to 4.2 metres in single tunnel configuration.

RAPIDwarm is a tunnel warmer for cold-filled beverages, bringing them to room temperature to avoid condensation on the container. Modular design with modules up to 4.2 mtr width in a single tunnel.

RAPIDwarm is a tunnel warmer for cold-filled beverages, bringing them to room temperature to avoid condensation on the container. Modular design with modules up to 4.2 mtr width in a single tunnel.

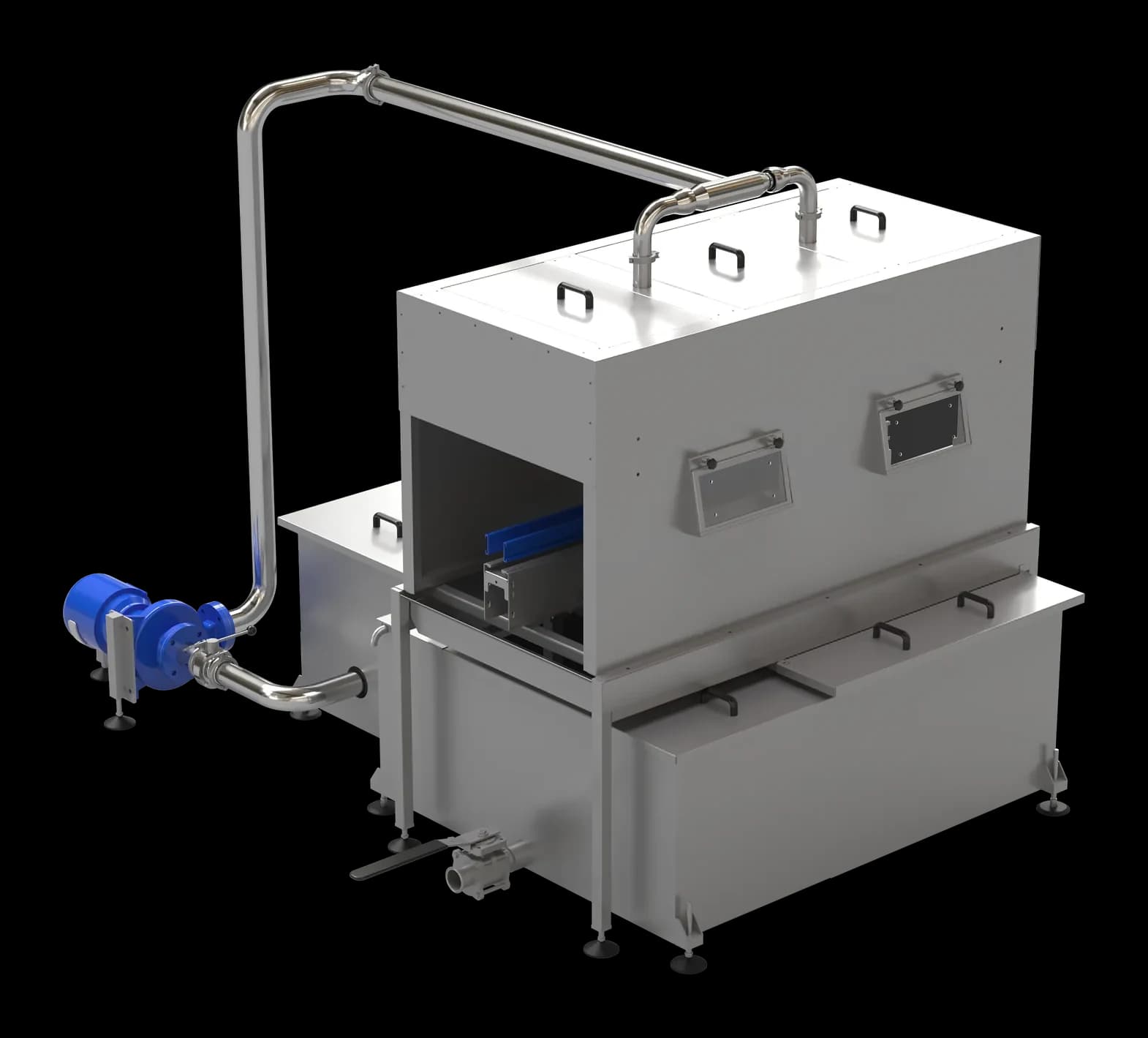

Initial pre-wash stage removes loose contaminants, mud, labels, and debris from returnable bottles before the main washing cycle. Uses washer drain water with residual caustic for spray pre-rinse, reducing load on the main washer and improving resource utilization..

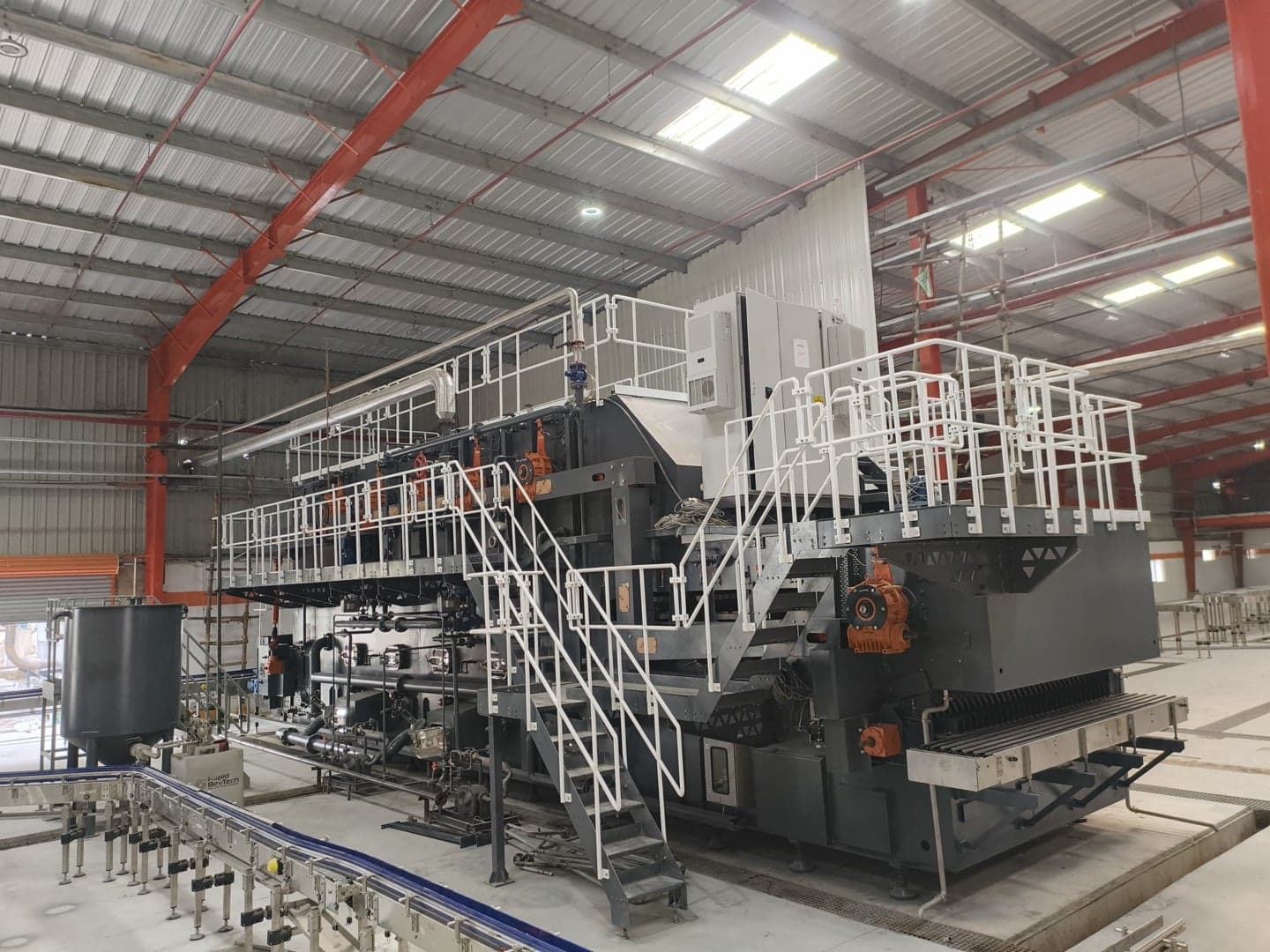

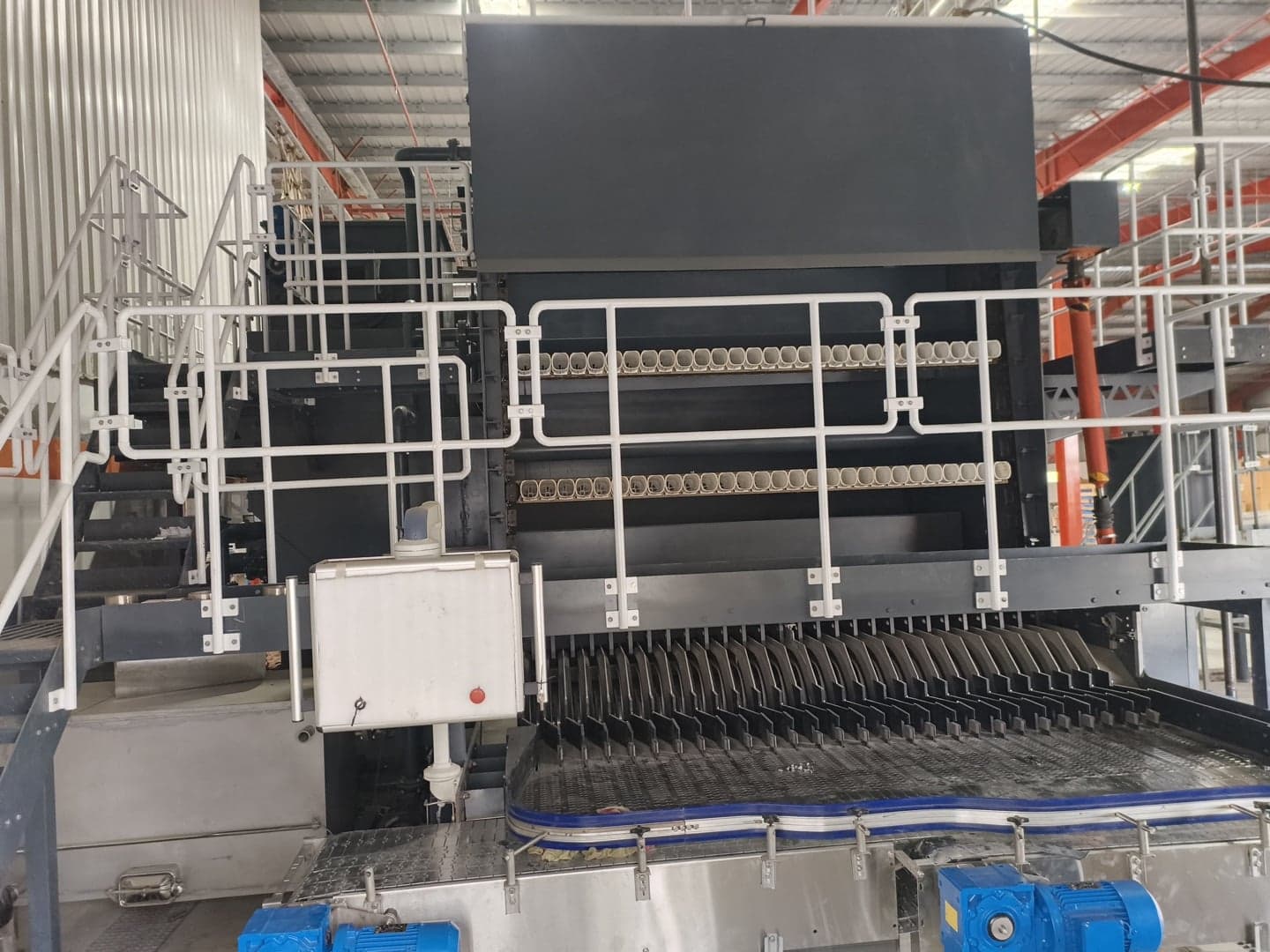

Washing system for a wide range of cylindrical glass bottles, ensuring product safety with optimal resource utilisation. The double-end bottle washer is available in rated speed ranging 8,000 – 42,000 BPH..

Washing system for a wide range of cylindrical glass bottles, ensuring product safety with optimal resource utilisation. The single-end bottle washer is available in rated speed up to 8,000 BPH with a smaller footprint..

RAPIDrinse-C is a gravity rinser where cans are rinsed with water while rolling down from 3.2 mtr to 1.1 mtr height. Plastic block turners ensure zero can damage as only plastic parts contact the cans.

RAPIDrinse-H is a hot water rinser for juice and sensitive beverage lines. Containers are rinsed with hot water (80-90°C) for microbiological safety before hot filling.

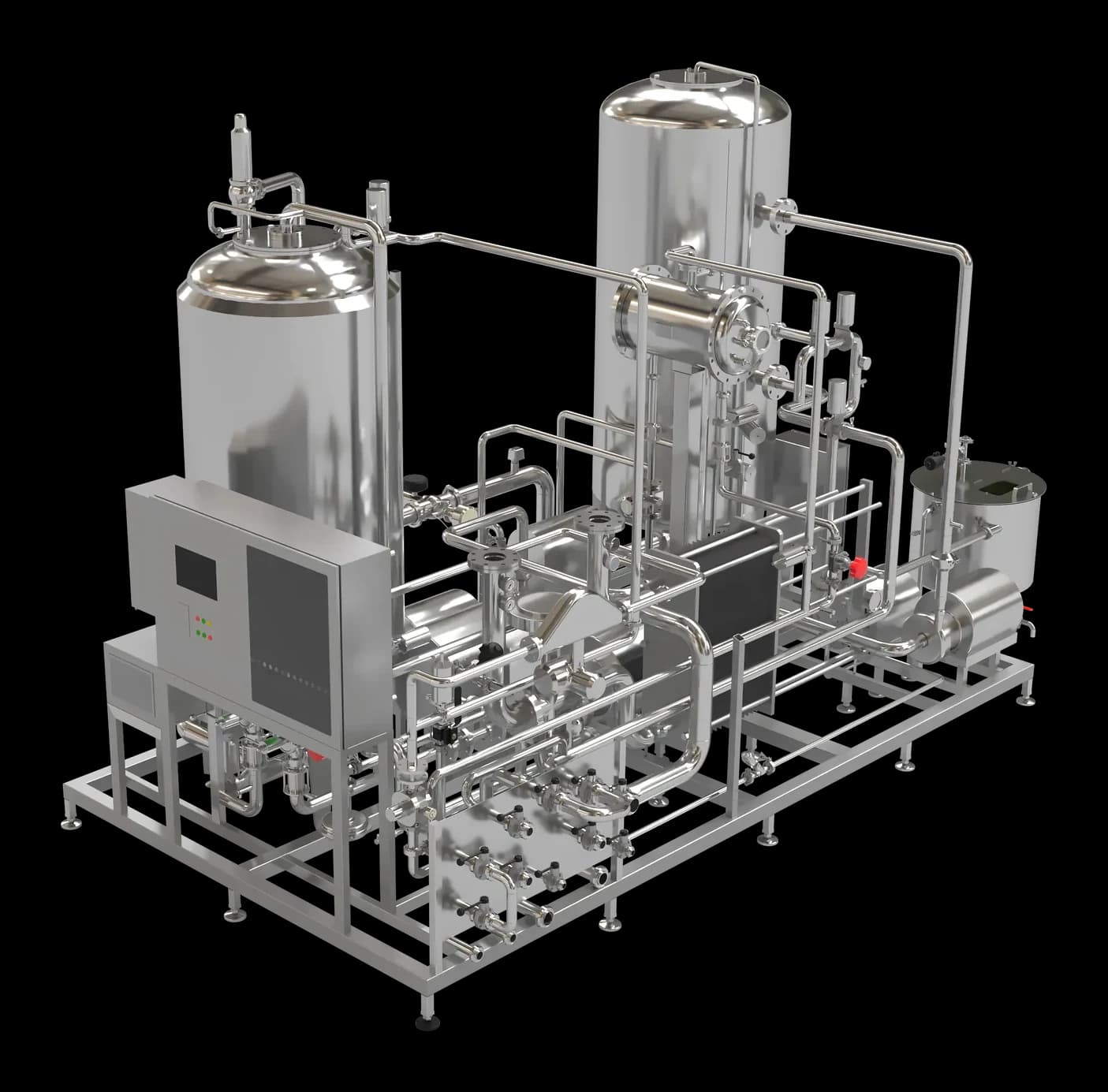

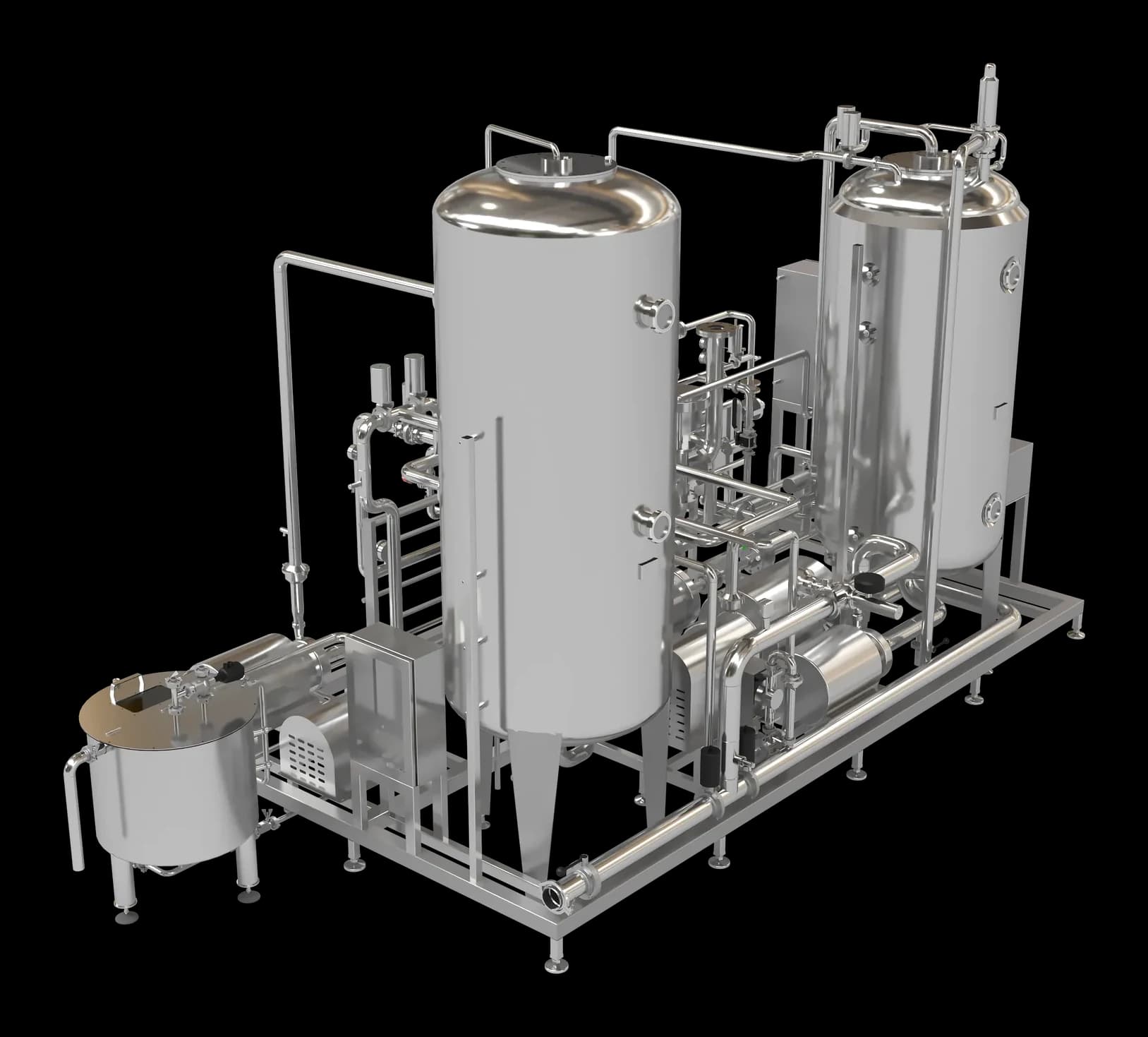

RAPIDcarbo-mix is a beverage mixer for two-component mixing of carbonated and non-carbonated beverages. The single skid-mounted system performs de-aeration, mixing, chilling, carbonating, and beverage storage, occupying minimum floor space..

RAPIDcarbo-mix is a beverage mixer for two-component mixing of carbonated and non-carbonated beverages. The single skid-mounted system performs de-aeration, mixing, chilling, carbonating, and beverage storage, occupying minimum floor space.

Advanced water treatment system by RAPIDion (partner company). Provides purified water for beverage production including RO, UV, and ozonation stages..

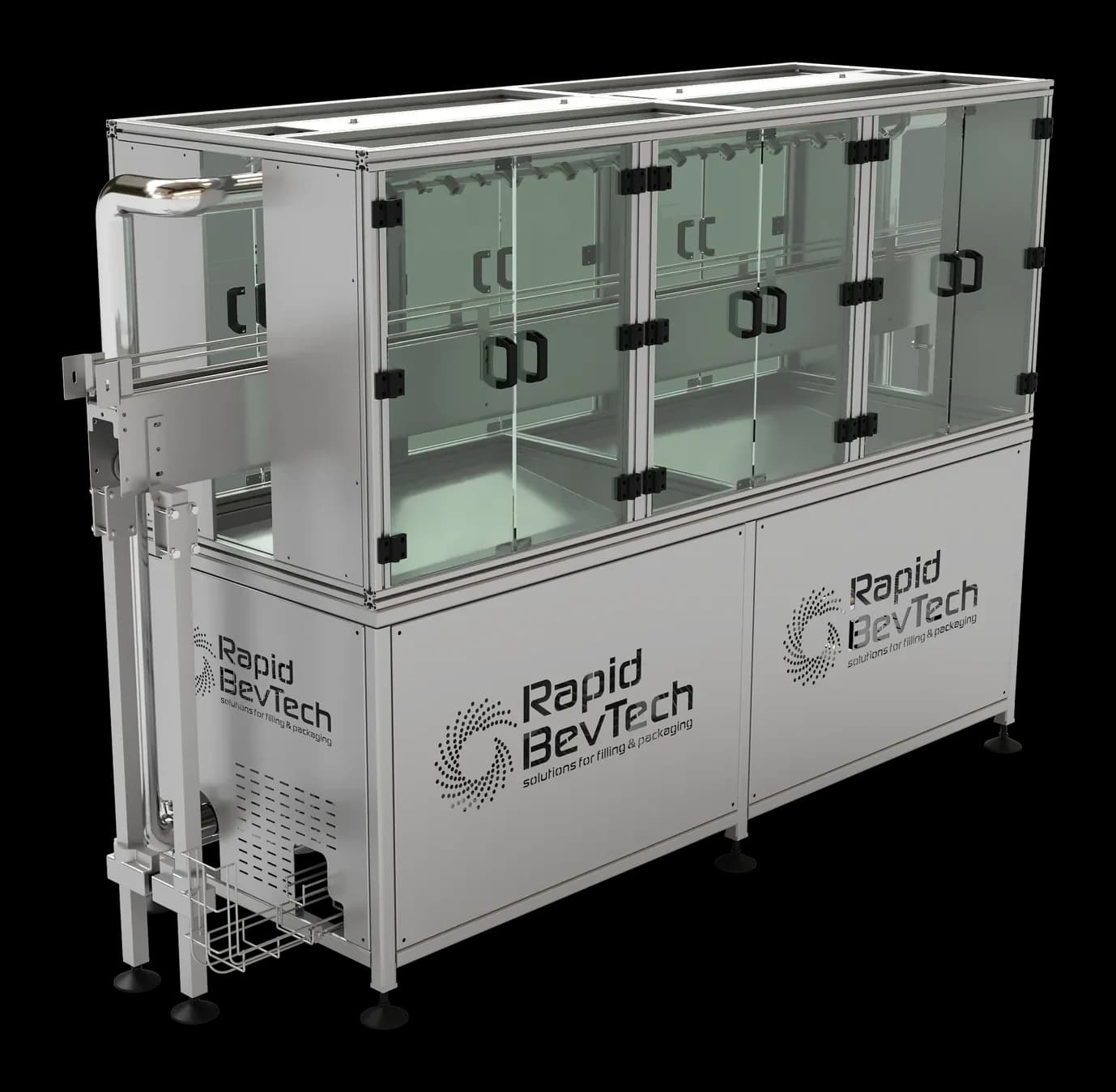

High-velocity air blow dryer for removing residual moisture from containers after washing, rinsing, or pasteurising. Ensures dry containers for labelling and packing stages..

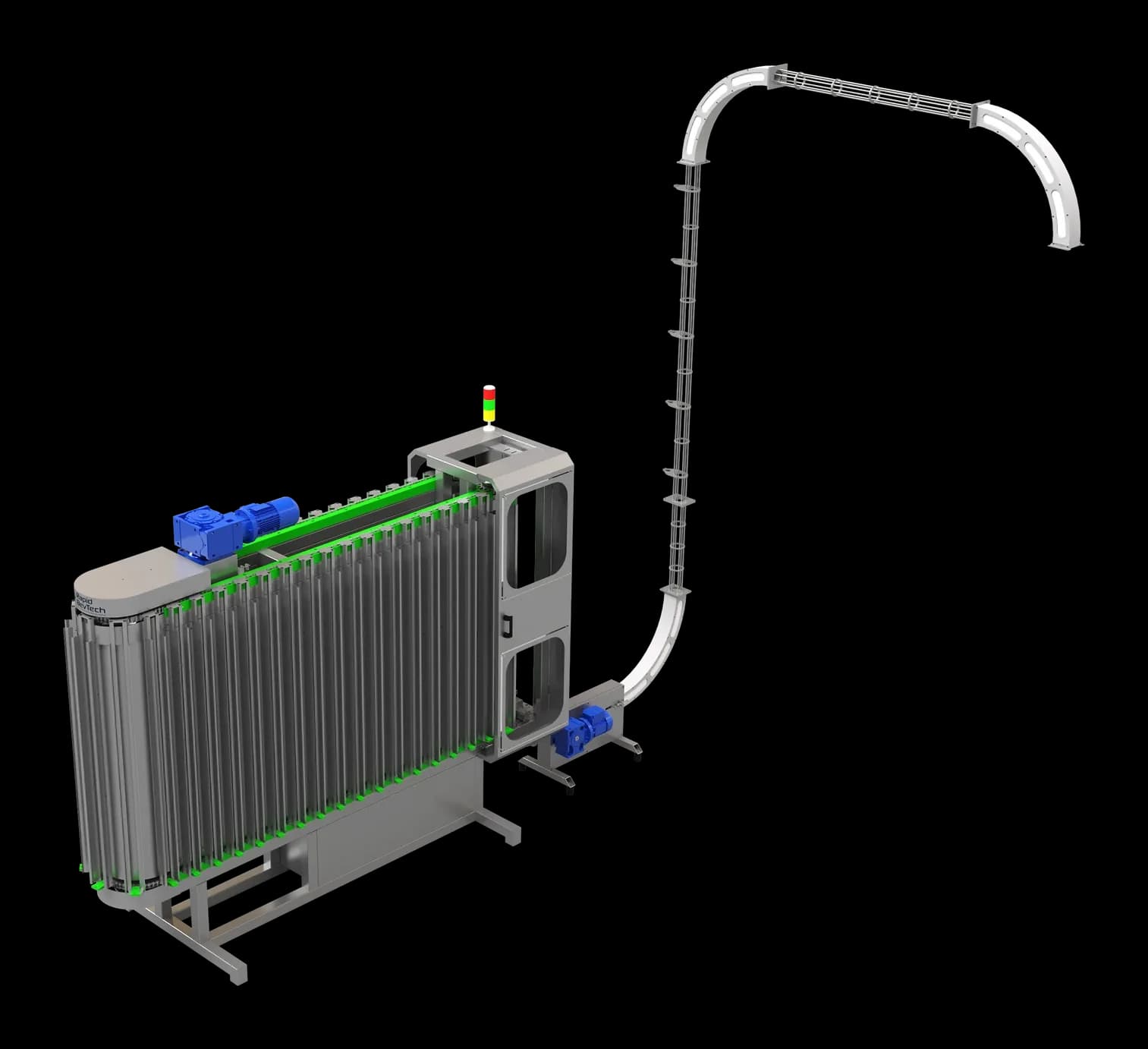

Automatic lid feeding to the seamer at high speed with consistent orientation and damage-free handling. Quick changeover between lid sizes with integrated filler-seamer synchronisation..
